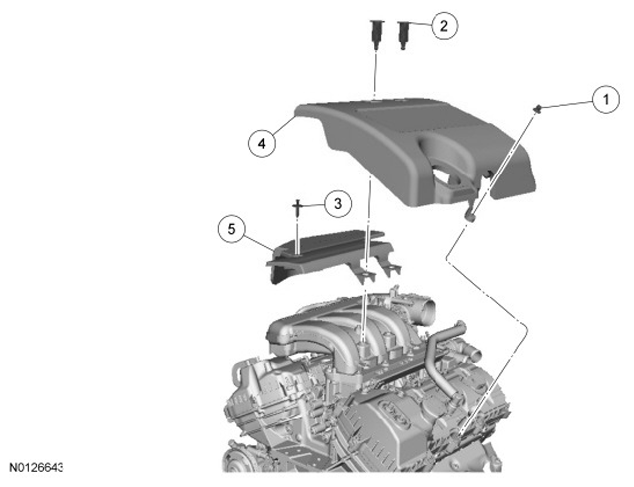

Engine Appearance Cover - Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | W715452 | Engine appearance cover nut - 2 Nm (18 lb-in) |
| 2 | 6N958 | Engine appearance cover retainer (2 required) |
| 3 | - | Engine appearance cover retainer (part of 6N041) |
| 4 | 6N041 | Engine appearance cover - LH |
| 5 | 6N041 | Engine appearance cover - RH |
- Use only a mild soap and water solution to clean the engine appearance cover.
