Bumper - Rear

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

MKX Shown in illustration, Edge Similar

Fig 1: Rear Bumper And Mounting Nuts With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707157	Rear bumper nut (6 required)
2	17906	Rear bumper

All Vehicles

Remove the rear bumper cover. For additional information, refer to BUMPER COVER - REAR .
Without trailer tow
Remove the 6 bumper mounting nuts (3 each side).
- To install, tighten to 25 Nm (18 lb-ft).
With trailer tow

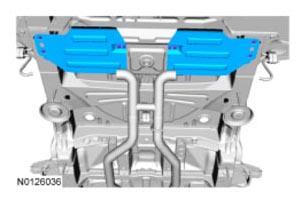

Remove the 2 underbody heat shields.
- Remove the 6 screws (3 each side).
- Remove the 2 pushpin retainers (1 each side).
- Disconnect the wiring harness from the left hand heat shield.

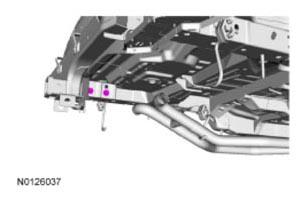

NOTE: Mufflers removed for clarity.

Remove the 4 inside rear bumper bolts (2 each side).
- To install, tighten to 90 Nm (66 lb-ft).
Remove the 4 rear bumper nuts (2 each side).
- To install, tighten to 25 Nm (18 lb-ft).
All vehicles
Remove the rear bumper.
To install, reverse the removal procedure.
