Bumper Cover - Rear
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
-
NOTE: MKX shown in illustration, Edge Similar.
Remove the 8 upper rear bumper cover pin-type retainers (6 on Edge).
- Remove the 2 upper rear bumper cover bolts.
- Remove the 12 screws (6 each side) from the rear wheel splash shields.

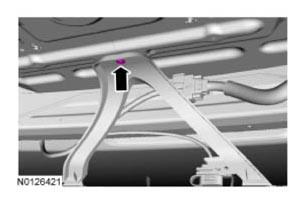

- Remove the rear bumper cover-to-body brace screw.

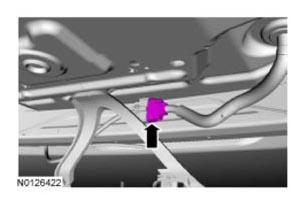

- Disconnect the trailer hitch and parking aid system wiring harness, if equipped.

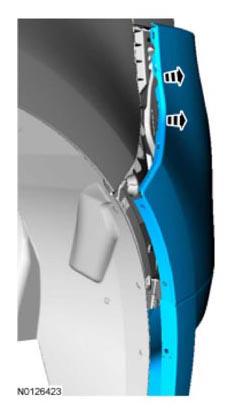

- Remove the rear bumper cover.
- To install, reverse the removal procedure.
- Transfer parts as necessary.
