Fuel Injection Pump: Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

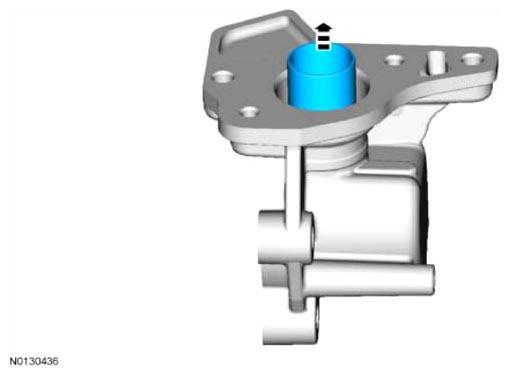

  1. NOTE: The cam lobe for the fuel injection pump must be at Bottom Dead Center (BDC) for the fuel injection pump installation.
    G08030305
  2. Inspect the fuel injection pump tappet. For additional information, refer to FUEL INJECTION PUMP TAPPET INSPECTION  .
    G08030306

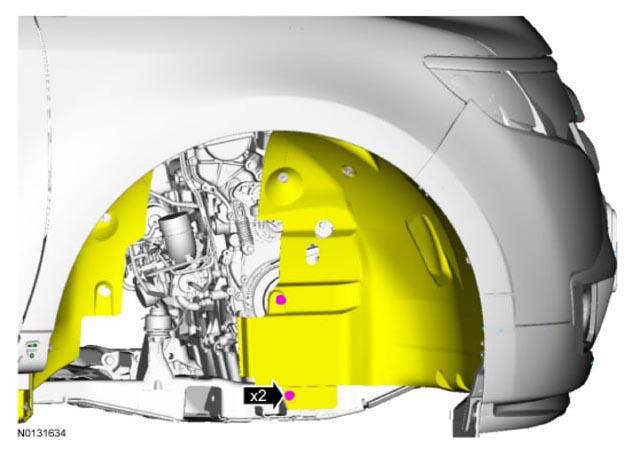

  3. G09295180

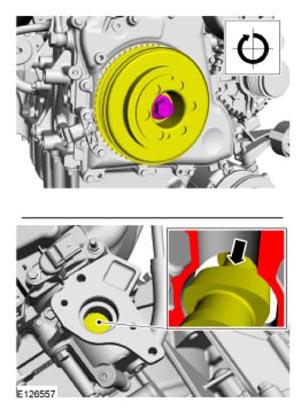

  4. NOTE: Only rotate the crankshaft clockwise or damage to the engine may occur.
    G09295181
  5. NOTE: Apply clean engine oil to the fuel injection pump tappet and to the fuel injection pump cover bore.
    G08030309
  6. NOTE: Make sure that a new fuel injection pump O-ring seal is installed.
    NOTE: Apply clean engine oil to the fuel injection pump O-ring seal.

    Lubricate and install a new fuel injection pump O-ring seal onto the fuel injection pump.

    G08030310
  7. NOTE: Make sure that new fuel injection pump bolts are installed.

    Install the fuel injection pump and loosely install 2 new fuel injection pump bolts, alternately tighten each bolt one complete revolution until seated. Tighten the 2 fuel injection pump bolts in the following 2 stages.

    • Stage 1: Tighten each bolt to 5 Nm (44 lb-in).
    • Stage 2: Tighten each bolt an additional 55 degrees.
      G08030311

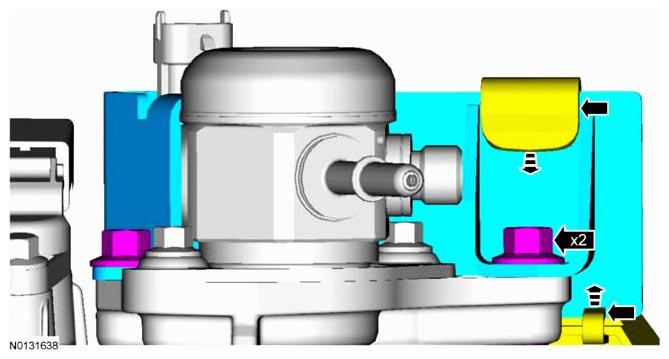

  8. Tighten to 17 Nm (150 lb-in).
    G08659926
  9. G09295180
  10. NOTE: Make sure that a new high pressure fuel tube is installed.
    • Hand tighten the high pressure fuel tube-to-fuel rail flare nut.
    • Hand tighten the high pressure fuel tube-to-fuel injection pump flare nut.
      G08030314
  11. Loosely install the 2 high pressure fuel tube bracket bolts.
    G08030315
  12. Tighten the 2 high pressure fuel tube flare nuts in the following 2 stages.
    NOTE: Calculate the correct torque wrench setting for the following torque. Refer to illustration  .
    • Stage 1: Using a torque adapter, tighten to 15 Nm (133 lb-in).
    • Stage 2: Tighten an additional 30 degrees.
      G00468730
      G08030316
  13. Tighten to 10 Nm (89 lb-in).
    G08030315
  14. For more information, refer to FUEL SYSTEM - GENERAL INFORMATION
    G09295191
  15. NOTE: Use care when installing the fuel injection pump noise insulator. Spreading the openings will aid in installing the fuel injection pump noise insulator and reduce the risk of damage.
    G08030299
  16. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  17. Pressurize the fuel system, For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
  18. Install the ACL  outlet pipe, for additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
