Tire Pressure Monitor (TPM) Module: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Open the glove compartment door and while pushing in on the glove compartment tab, position the glove compartment downwards.

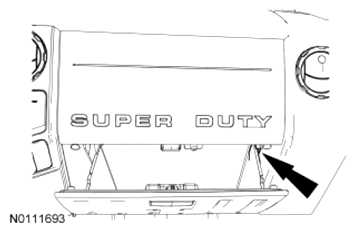

Fig 1: Locating Glove Compartment Door
Courtesy of FORD MOTOR CO.
Disconnect the TPMS and external antenna electrical connectors.

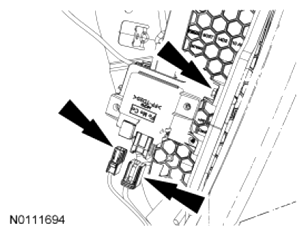

Fig 2: Locating TPMS And External Antenna Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the screw and the TPMS.
