Front Door Alignment - SuperCab

Inspection

• 1.

  Check the rear door alignment. Refer to: Rear Door Alignment - SuperCab .

• 2.

  Inspect the front door-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

• 1.

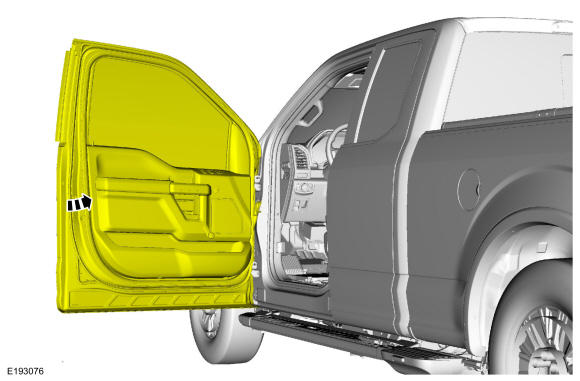

  Open the door.

Courtesy of FORD MOTOR COMPANY

• 2.

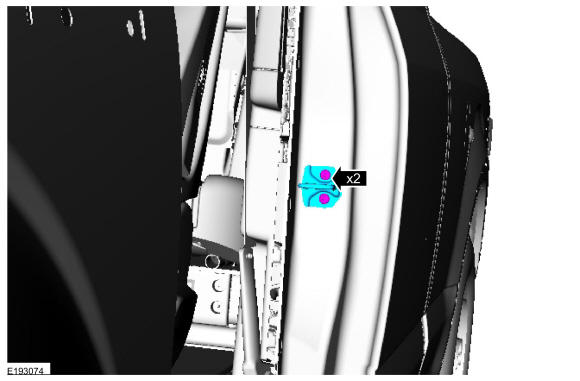

  Remove the bolts and the striker assembly.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

• 3.

  Open the door.

Courtesy of FORD MOTOR COMPANY

• 4.

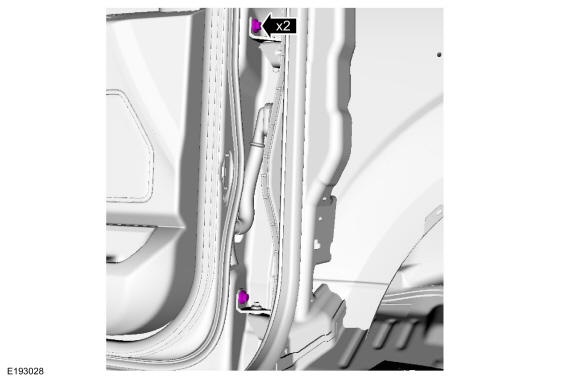

  Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

• 5.

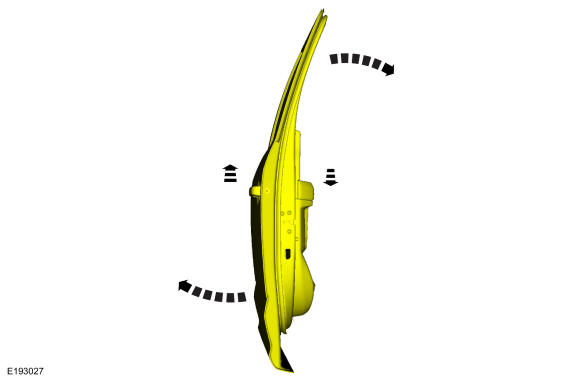

  Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

• 6.

  Tighten the bolts.

  Torque

  : 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

• 7.

  Open the door.

Courtesy of FORD MOTOR COMPANY

• 8.

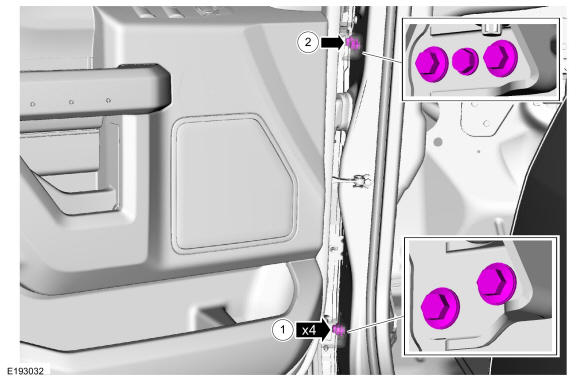

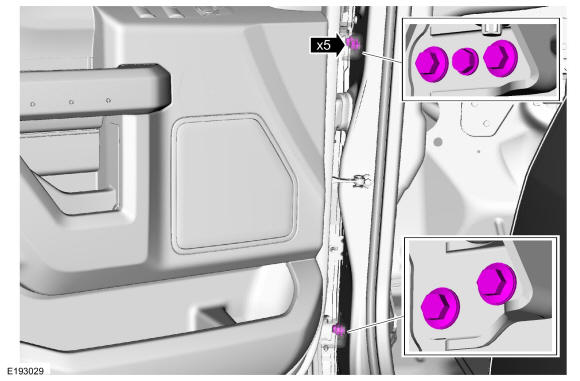

  Loosen the bolts enough to permit movement of the door.

Courtesy of FORD MOTOR COMPANY

• 9.

  Carefully close the door.

Courtesy of FORD MOTOR COMPANY

• 10.

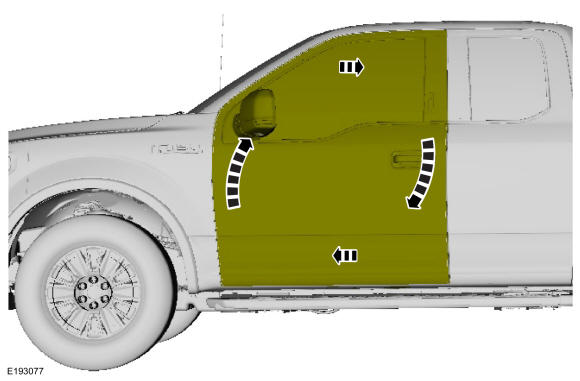

  Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

• 11.

  Carefully open the door.

Courtesy of FORD MOTOR COMPANY

• 12.


  NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in Fig 1.

  Tighten the bolts.

  Torque:

  1.: 20 lb.ft (27.5 Nm)

  2.: 89 lb.in (10 Nm)

Fig 1: Torque Wrench Adapter Formulas

Courtesy of FORD MOTOR CO.

Courtesy of FORD MOTOR COMPANY

All alignments

• 13.

  Install the striker assembly.

  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 14.

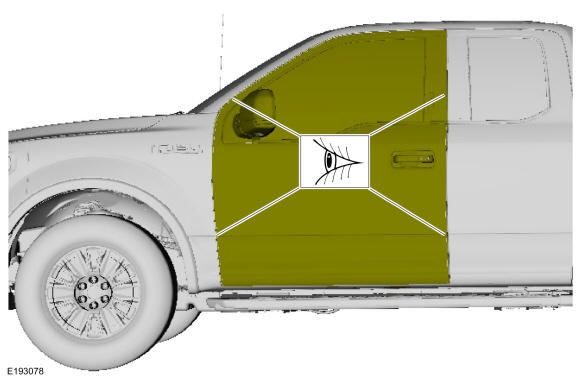

  Inspect the body-to-front door dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
