Rear Door Alignment - SuperCab

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: LH side shown in illustration, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Inspect the rear door-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

1.

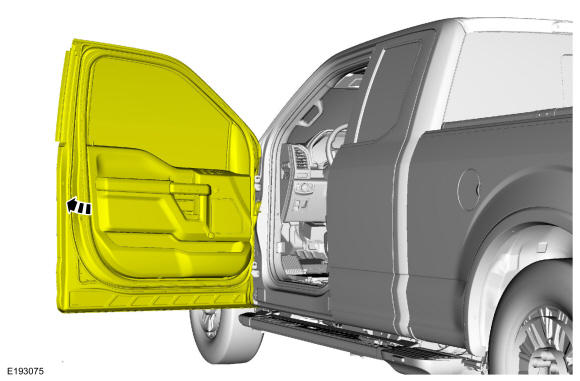

Open the front door.

GFD42621

Courtesy of FORD MOTOR COMPANY

2.

Open the rear door.

GFD42626

Courtesy of FORD MOTOR COMPANY

3.

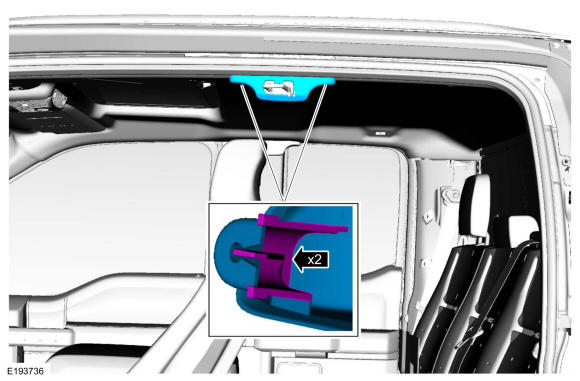

Remove the upper striker assembly trim panel cover.

GFD42627

Courtesy of FORD MOTOR COMPANY

4.

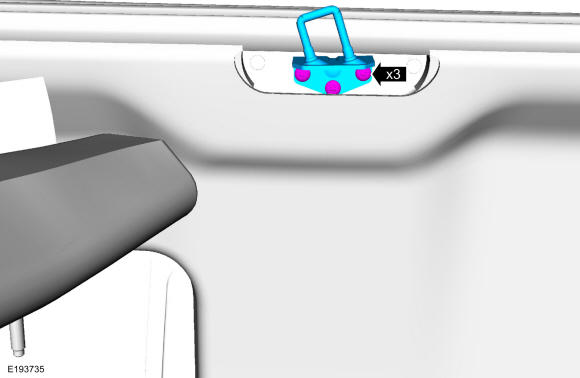

Remove the bolts and the upper striker assembly.
Torque

: 18 lb.ft (25 Nm)

GFD42628

Courtesy of FORD MOTOR COMPANY

5.

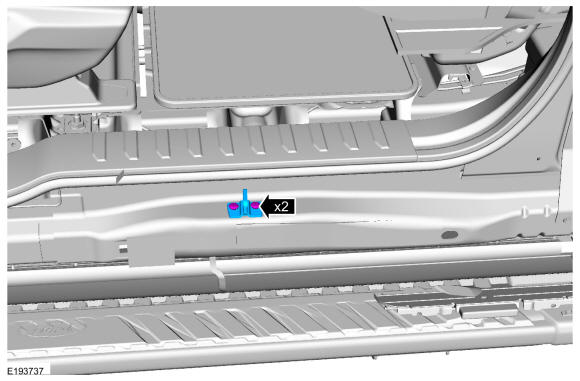

Remove the bolts and the lower striker assembly.
Torque

: 18 lb.ft (25 Nm)

GFD42629

Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment

6.

Open the front door.

GFD42621

Courtesy of FORD MOTOR COMPANY

7.

Open the rear door.

GFD42626

Courtesy of FORD MOTOR COMPANY

8.

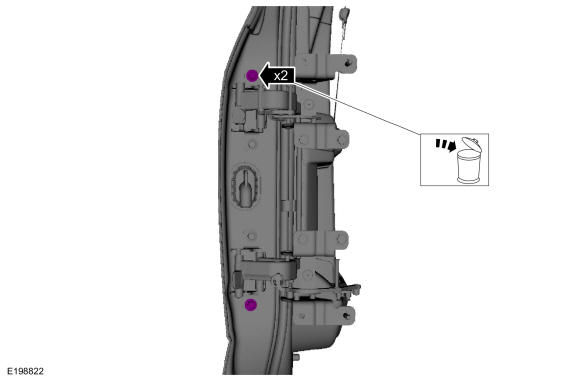

Remove and discard the bolts.

GFD42630

Courtesy of FORD MOTOR COMPANY

9.

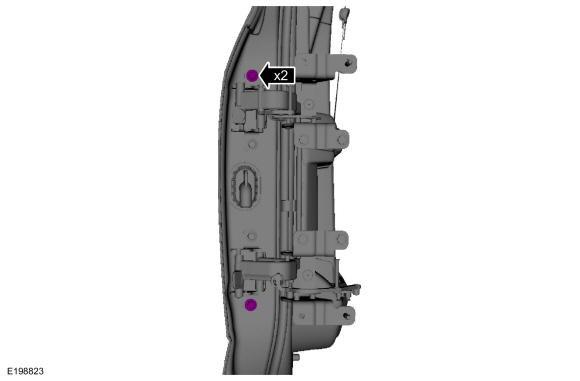

Install the new bolts.
Torque

: 20 lb.ft (27.5 Nm)

GFD42631

Courtesy of FORD MOTOR COMPANY

10.

Loosen the bolts enough to permit movement of the door.

GFD42632

Courtesy of FORD MOTOR COMPANY

11.

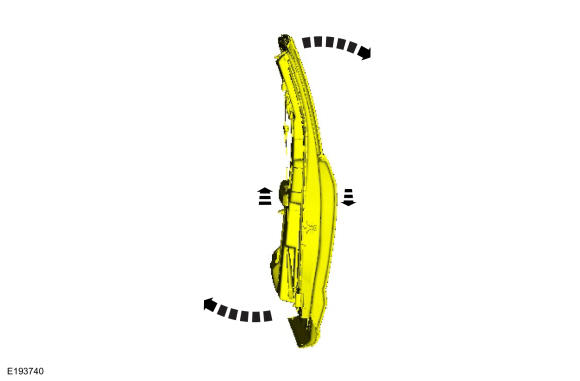

Adjust the door to specification. Refer to: Body and Frame .

GFD42633

Courtesy of FORD MOTOR COMPANY

12.

Tighten the bolts.
Torque

: 20 lb.ft (27.5 Nm)

GFD42634

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment

13.

Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .

14.

Open the front door.

GFD42621

Courtesy of FORD MOTOR COMPANY

15.

Open the rear door.

GFD42626

Courtesy of FORD MOTOR COMPANY

16.

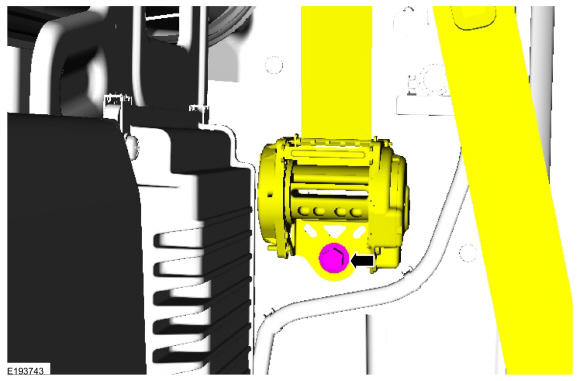

Remove the bolt and position aside the safety belt retractor.
Torque

: 30 lb.ft (40 Nm)

GFD42635

Courtesy of FORD MOTOR COMPANY

17.

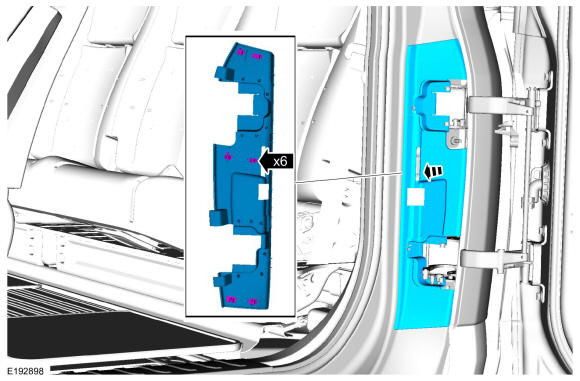

Remove the rear body access trim panel.

GFD42636

Courtesy of FORD MOTOR COMPANY

18.

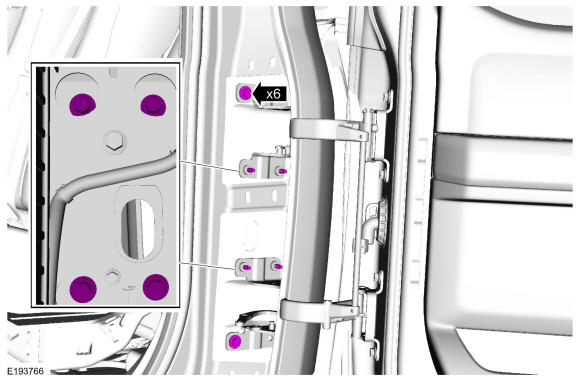

Loosen the bolts enough to permit movement of the door.

GFD42637

Courtesy of FORD MOTOR COMPANY

19.

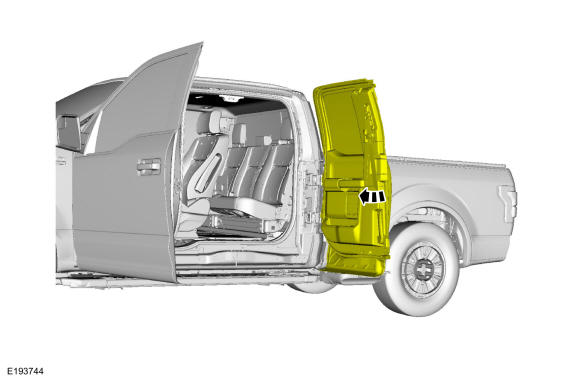

Carefully close the door.

GFD42638

Courtesy of FORD MOTOR COMPANY

20.

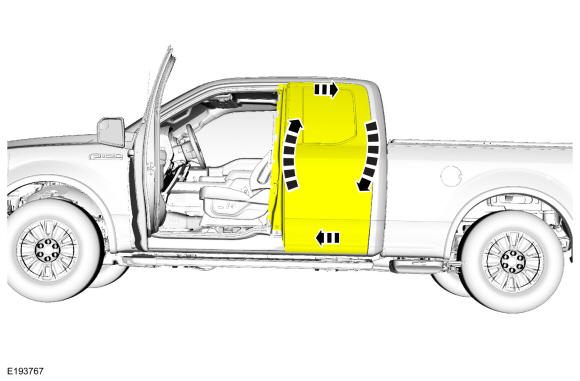

Adjust the door to specification. Refer to: Body and Frame .

GFD42639

Courtesy of FORD MOTOR COMPANY

21.

Carefully open the door.

GFD42626

Courtesy of FORD MOTOR COMPANY

22.

Tighten the bolts.
Torque

: 26 lb.ft (35 Nm)

GFD42640

Courtesy of FORD MOTOR COMPANY

All alignments

23.

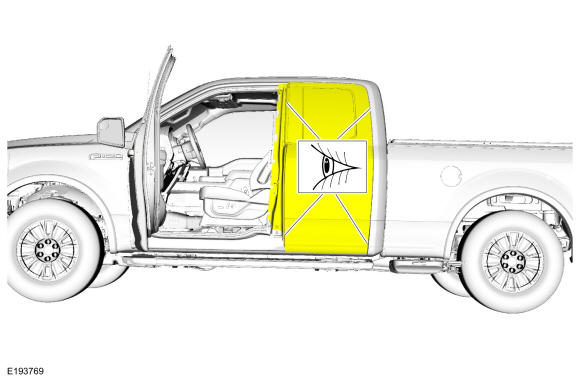

Inspect the body-to-rear door dimensions. Refer to: Body and Frame .

GFD42641

Courtesy of FORD MOTOR COMPANY

24.

Install the removed components.
- During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
