Instrument Panel Cluster (IPC) Lens: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Install the screws and torque in the sequence shown, ensure the tabs are seated.

    Torque

    : 10 lb.in (1.1 Nm)

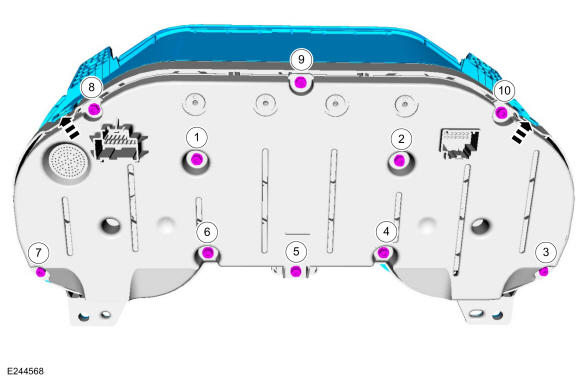

Fig 1: Instrument Panel Cluster (IPC) Screws Tightening Sequence
GFD42266Courtesy of FORD MOTOR CO.
GFD42266Courtesy of FORD MOTOR COMPANY

  1. 2.

    Install the IPC. Refer to: Instrument Panel Cluster (IPC) .
