High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Lower the rear of the headliner. Refer to: Headliner - Lowering - Regular Cab . Refer to: Headliner - Lowering - SuperCab . Refer to: Headliner - Lowering - SuperCrew .

2.

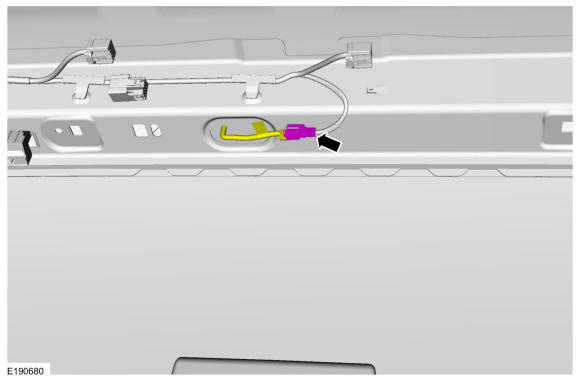

Disconnect the center high mounted stoplamp electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

Remove the screws and the center high mounted stoplamp assembly.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with incandescent bulbs

4.

Remove the screws and position the high mounted stoplamp aside.

Courtesy of FORD MOTOR COMPANY

5.

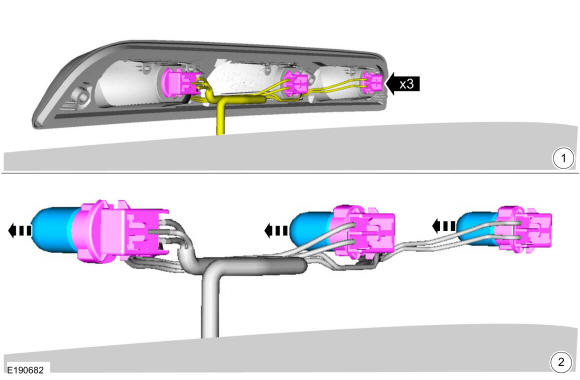

If required, remove the incandescent bulb.
1. 1.

  Remove the bulb holder.
1. 2.

  Remove the bulb.

Courtesy of FORD MOTOR COMPANY
