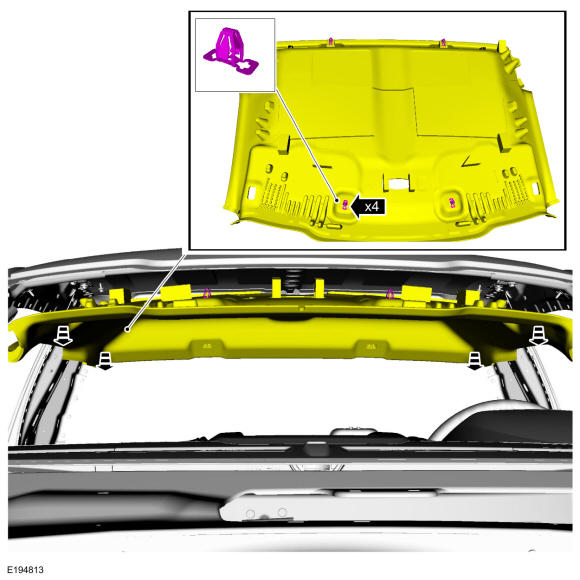

Headliner - Lowering - Regular Cab
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
- 1.
Remove the following items:- 1.
On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
- 2.
On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - Regular Cab .
- 1.
- 2.NOTE: LH side shown in illustration, RH side similar.
On both sides, remove the sun visor.
- 1.
Remove the retainer cover.
- 2.
Remove the retainer.
- 3.
Remove the sun visor.
- 4.
If equipped, disconnect the electrical connector.
- 1.
- 3.NOTE: LH side shown in illustration, RH side similar.
On both sides, remove the retainers and the sun visor clips.
- 5.

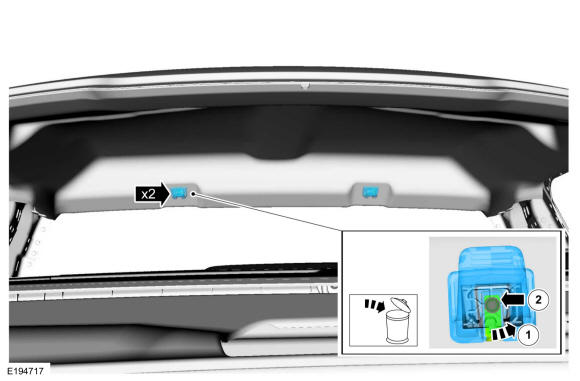

On both sides, remove the garment hooks.- 1.
Open the garment hook retainer cover.
- 2.
Remove the retainer and the garment hook.
- 1.
