Parking Brake Cable RH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

Release the parking brake cable tension. Refer to Parking Brake Cable Tension Release .

2.

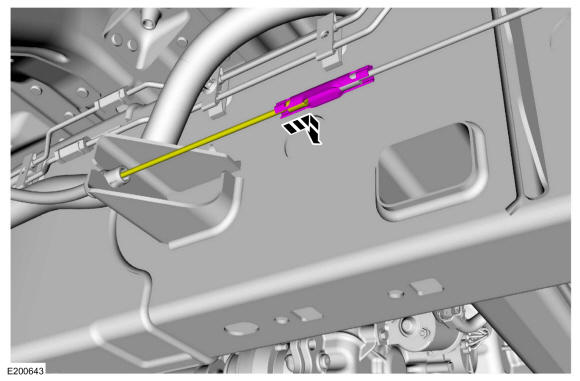

Disconnect the front parking brake cable from the cable union.

GFD38854

Courtesy of FORD MOTOR COMPANY

3.

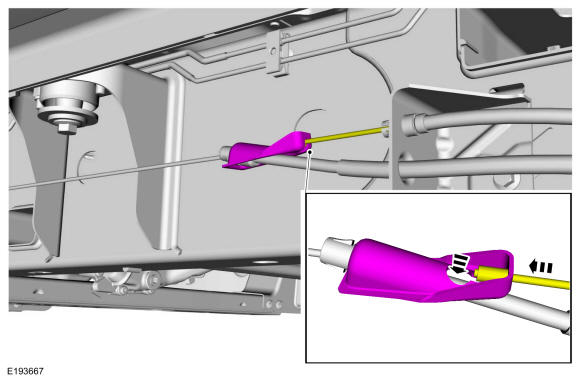

Detach the LH parking brake cable from the equalizer bracket.

GFD38850

Courtesy of FORD MOTOR COMPANY

4.

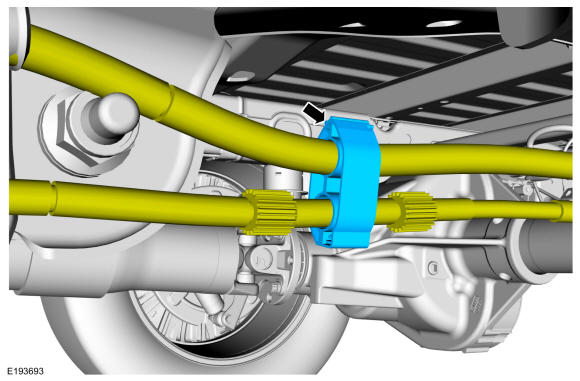

Open and remove the parking brake cable clip.

GFD38852

Courtesy of FORD MOTOR COMPANY

5.

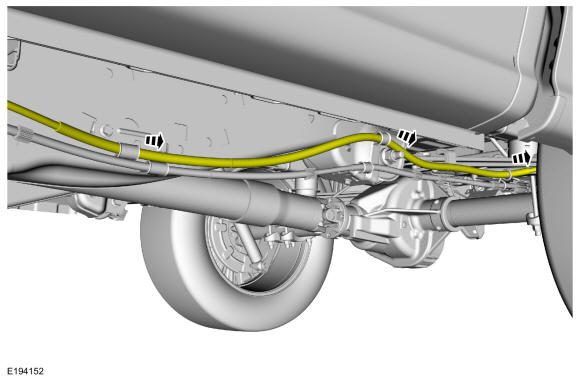

Route the LH parking brake cable though the RH parking brake cable brackets and position the LH parking brake cable aside.

GFD38855

Courtesy of FORD MOTOR COMPANY

6.

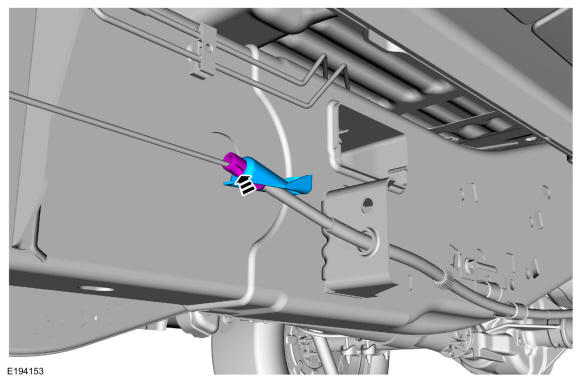

Press inward on the 2 tabs and remove the equalizer bracket.

GFD38856

Courtesy of FORD MOTOR COMPANY

Vehicles with 3, 683 mm (145 inch) or 3, 987 mm (157 inch) wheelbase

7.

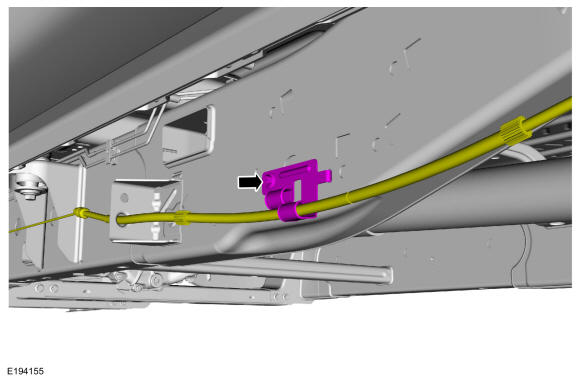

Remove the parking brake cable bracket bolt.
Torque

: 30 lb.ft (40 Nm)

GFD38857

Courtesy of FORD MOTOR COMPANY

Vehicles with 3, 581 mm (141 inch) or 4, 140 mm (163 inch) wheelbase

8.

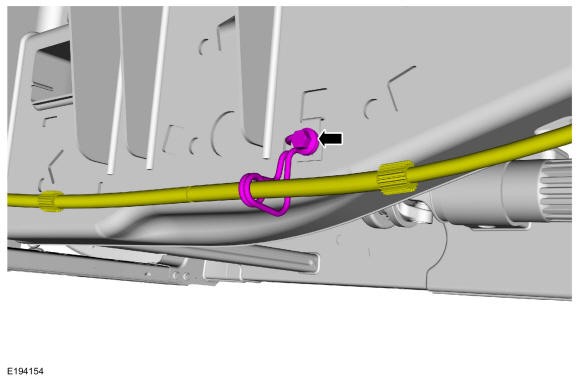

Remove the parking brake cable bracket bolt.
Torque

: 18 lb.ft (25 Nm)

GFD38858

Courtesy of FORD MOTOR COMPANY

All vehicles

9.

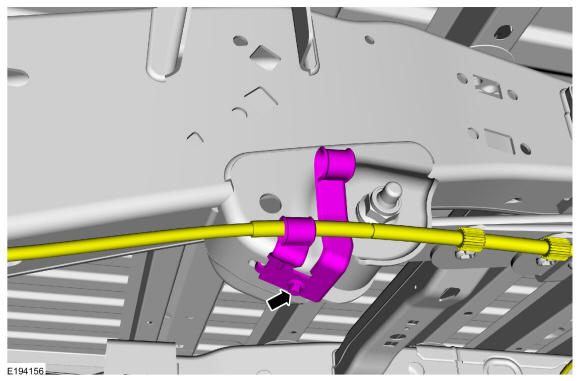

Remove the parking brake cable bracket bolt.
Torque

: 177 lb.in (20 Nm)

GFD38859

Courtesy of FORD MOTOR COMPANY

10.
- 1.

  Press inward on the 2 RH parking brake cable retainer tabs and detach the cable from caliper support bracket.
- 2.

  Detach the RH parking brake cable from the parking brake shoe actuator lever.

GFD38457

Courtesy of FORD MOTOR COMPANY

11.

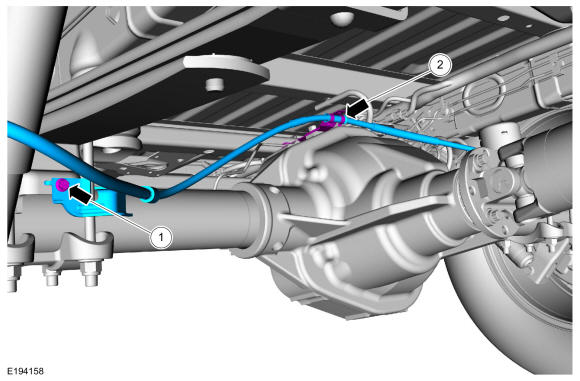

- Remove the parking brake cable bracket bolt.
  Torque

  : 22 lb.ft (30 Nm)
- Detach the parking brake cable from the clip and remove the RH parking brake cable.

GFD38860

Courtesy of FORD MOTOR COMPANY
