Parking Brake Cable Tension Release
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Pressure release
- 1.NOTE: Make sure the parking brake control is in the released position.
With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting - Overview .
- 2.

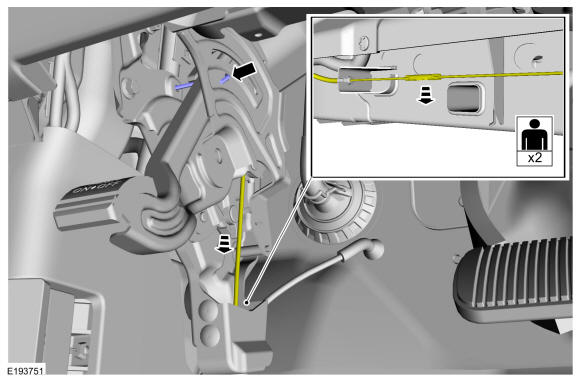

With an assistant, release the parking brake cable tension by pulling down on the intermediate cable at the cable-to-cable union until the parking brake control sector rotates to its stop and insert a 4 mm (0.15 in) x 150 mm (5.9 in) retainer pin.
