Parking Brake Cable LH: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Vehicles with 3, 683 mm (145 inch) wheel base shown in illustration, all others similar
- 1.
Release the parking brake cable tension. Refer to Parking Brake Cable Tension Release .
- 2.

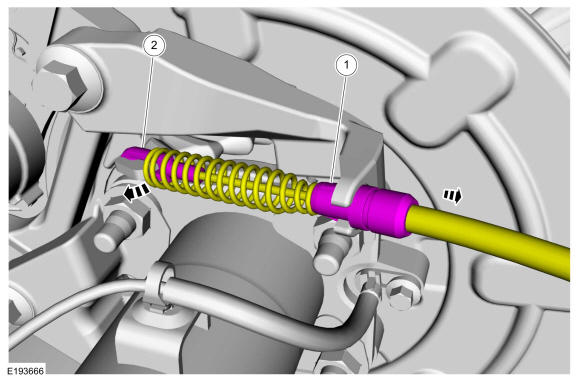

- 1.
Press inward on the 2 LH parking brake cable retainer tabs and detach the cable from caliper support bracket.
- 2.
Detach the LH parking brake cable from the parking brake shoe actuator lever.
- 1.
- 4.

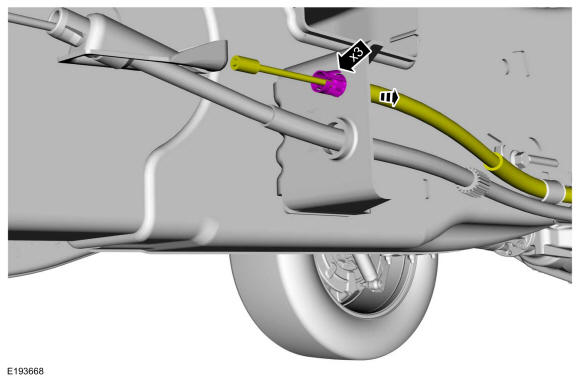

Press inward on the 3 LH parking brake cable retainer tabs and detach the cable from the frame bracket.
- 6.

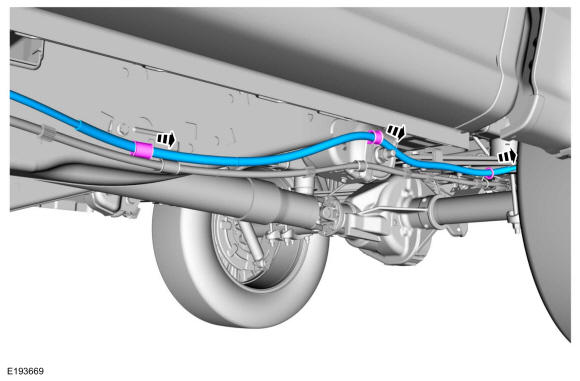

Route the LH parking brake cable though the RH parking brake cable brackets and remove the LH parking brake cable.
