Transmission - 3.5L EcoBoost (272kW/370PS): Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prior to installing a new transmission or an overhauled transmission with a new main control, record the solenoid strategy identification tag. If a new main control was installed, install the replacement solenoid body tag over the original identification tag.

  1. 1.

    If removed, install the bracket and the new bolts.

    Torque

    : 22 lb.ft (30 Nm)

GFD41443Courtesy of FORD MOTOR COMPANY

  1. 2.

    Lubricate the torque converter pilot hub with multi-purpose grease.

    Material

    : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

GFD39526Courtesy of FORD MOTOR COMPANY

  1. 3.

    If the transmission has a new torque converter align the sticker to the 12 o'clock position.
GFD41444Courtesy of FORD MOTOR COMPANY

  1. 4.

    Install the special tool.

    Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

GFD40262Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.
    NOTE: If transmission was disassembled, add transmission fluid to the transmission.
    NOTE: Rear Wheel Drive (RWD) shown in illustration, Four-Wheel Drive (4WD) similar.

    1. 1.

      Remove the transmission fluid fill plug transmission fluid level indicator assembly.

      Torque

      : 19 lb.ft (26 Nm)

    1. 2.

      Verify transmission is filled with transmission fluid.

    1. 3.

      Slightly tilt the transmission rearward.

    1. 4.

      If the transmission was disassembled, add 11.35L (12 qt) of transmission fluid to the transmission through the transmission fluid fill hole.

      Material

      : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

GFD41445Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

  1. 6.

    If removed, install the transfer case and the new bolts.
    • Tighten the bolts evenly in a star pattern.

      Torque

      : 150 lb.in (17 Nm)

GFD41446Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission.

    • Make sure the transmission is securely fastened to the transmission jack.
    • Tilt the front of the transmission down.
    • Slide the transmission towards the rear of the vehicle.
    • Raise the front of the transmission into a horizontal position.
    • Use the General Equipment: Transmission Jack
GFD41447Courtesy of FORD MOTOR COMPANY

Rear Wheel Drive (RWD) vehicles

  1. 8.

    NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, position the transmission in the vehicle.

    Use the General Equipment: Transmission Jack

All vehicles

  1. 9.

    Remove the special tool.

    Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

GFD41463Courtesy of FORD MOTOR COMPANY

  1. 10.

    Align the index-mark made during removal.
GFD41464Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine.
    NOTE: With the transmission in a horizontal position, move it toward the engine and position it on the dowel pins.

    Position the bracket and install the top bellhousing bolts.

    Torque

    : 35 lb.ft (48 Nm)

GFD41462Courtesy of FORD MOTOR COMPANY

  1. 12.

    Install the selector lever cable bracket and the LH bellhousing bolts.

    Torque

    : 35 lb.ft (48 Nm)

GFD41438Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the RH bellhousing bolts.

    Torque

    : 35 lb.ft (48 Nm)

GFD41461Courtesy of FORD MOTOR COMPANY

  1. 14.

    Install the lower bellhousing bolt.

    Torque

    : 35 lb.ft (48 Nm)

GFD41460Courtesy of FORD MOTOR COMPANY

  1. 15.

    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD41465Courtesy of FORD MOTOR COMPANY

  1. 16.

    Install the access cover and the pin-type retainers.
GFD41458Courtesy of FORD MOTOR COMPANY

  1. 17.

    1. 1.

      Push the transmission electrical connector in to connect.

    1. 2.

      Rotate the transmission electrical connector clockwise.

    1. 3.

      Attach the wiring harness retainers.
GFD41466Courtesy of FORD MOTOR COMPANY

Rear Wheel Drive (RWD)

  1. 18.

    Position the fuel line bracket and install the bolt.

    Torque

    : 26 lb.ft (35 Nm)

GFD41455Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

  1. 19.

    Position the fuel line bracket and install the bolt. Connect the transfer case vent tube.

    Torque

    : 26 lb.ft (35 Nm)

GFD41456Courtesy of FORD MOTOR COMPANY

  1. 20.

    Connect the transfer case electrical connector.
GFD41435Courtesy of FORD MOTOR COMPANY

All vehicles

  1. 21.

    NOTE: When installing the selector lever cable end, make sure that the selector lever cable end is correctly installed onto the manual control lever. Pull back on the selector lever cable to make sure the selector lever cable end is securely installed onto the manual control lever.
    NOTE: Apply pressure to the selector lever cable end while connecting it to the manual control lever to make sure the selector lever has not moved out of the DRIVE position.

    Connect the selector lever cable to the manual control lever.

    1. 1.

      Connect the selector lever cable to the bracket.

    1. 2.

      Install the selector lever cable bolt.

      Torque

      : 62 lb.in (7 Nm)

    1. 3.

      NOTE: Listen for a audible click when sliding the locking tab down.

      Connect the selector lever cable end to the manual control lever and slide the locking tab down.

GFD41449Courtesy of FORD MOTOR COMPANY

  1. 22.

    NOTE: Inspect the case and make sure the old transmission fluid cooler tube O-rings are not stuck in the case.
    NOTE: Install new transmission fluid cooler tube O-rings on the ends of the transmission fluid cooler tubes prior to installing.

    Install new transmission fluid cooler tube O-rings on the transmission fluid cooler tubes.

GFD39532Courtesy of FORD MOTOR COMPANY

  1. 23.

    Install the transmission fluid cooler tubes and the new transmission fluid cooler tube bracket bolt.

    Torque

    : 22 lb.ft (30 Nm)

GFD41467Courtesy of FORD MOTOR COMPANY

  1. 24.

    If equipped, install the selector lever cable splash shield and nut.

    Torque

    : 106 lb.in (12 Nm)

GFD41406Courtesy of FORD MOTOR COMPANY

  1. 25.

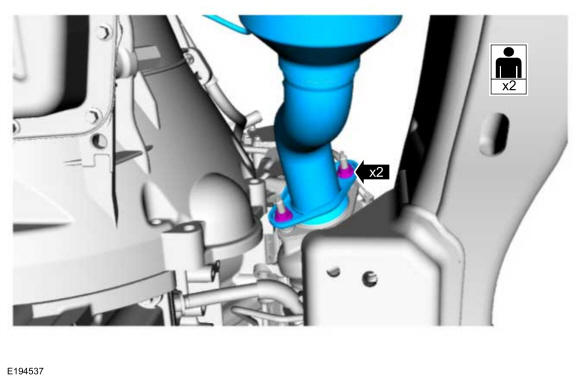

    NOTE: Loosely install the new RH catalytic converter nuts. Do not tighten at this time.

    Position the RH catalytic converter in the vehicle. Loosely install the new RH catalytic converter nuts.

GFD41468Courtesy of FORD MOTOR COMPANY

  1. 26.

    Install the transmission support insulator. Refer to: Transmission Support Insulator .

  1. 27.

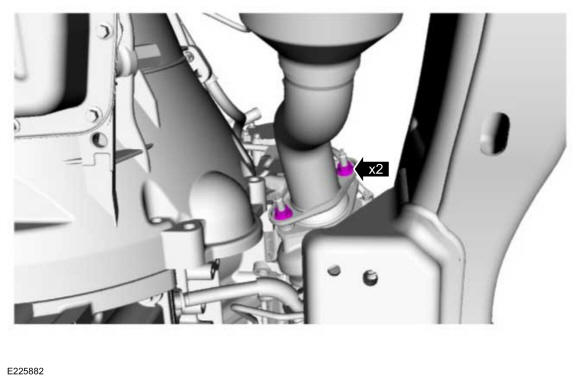

    NOTE: Evenly tighten the catalytic converter nuts.

    Tighten the RH catalytic converter nuts.

    Torque

    : 30 lb.ft (40 Nm)

GFD41469Courtesy of FORD MOTOR COMPANY

  1. 28.

    Install the LH catalytic converter. Refer to: CATALYTIC CONVERTER LH .

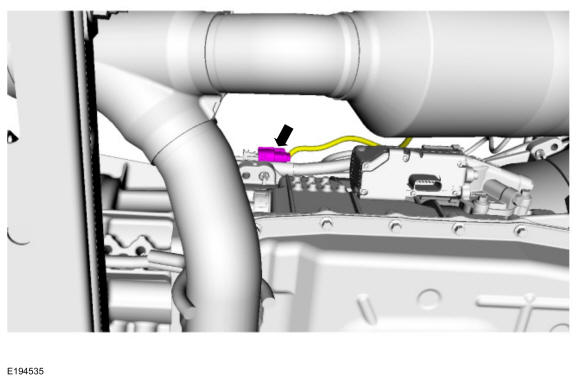

  1. 29.

    Connect the catalyst monitor sensor electrical connector.
GFD41452Courtesy of FORD MOTOR COMPANY

  1. 30.

    Connect the HO2S electrical connector.
GFD41242Courtesy of FORD MOTOR COMPANY

  1. 31.

    Install the catalytic converter flange to the muffler inlet pipe bolts.

    Torque

    : 30 lb.ft (40 Nm)

GFD41430Courtesy of FORD MOTOR COMPANY

  1. 32.

    Install the rear driveshaft assembly. Refer to: Rear Driveshaft .

Four-Wheel Drive (4WD) vehicles

  1. 33.

    Install the front driveshaft assembly. Refer to: Front Driveshaft .

  1. 34.

    Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

Rear Wheel Drive (RWD)

  1. 35.

    Install the new stabilizer bar bracket nuts.

    Torque

    : 41 lb.ft (55 Nm)

GFD41451Courtesy of FORD MOTOR COMPANY

All vehicles

  1. 36.

    NOTE: If equipped with a underbody splash shield, do not install the splash shield at this time.

    Install the starter motor assembly. Refer to: STARTER MOTOR .

  1. 37.

    Connect the LHHO2S electrical connector.
GFD41244Courtesy of FORD MOTOR COMPANY

  1. 38.

    Install the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 39.

    Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

  1. 40.

    Verify that the selector lever cable is correctly adjusted. Refer to: Selector Lever Cable Adjustment - Vehicles With: Column Shift . Refer to: Selector Lever Cable Adjustment - Vehicles With: Floor Shift .

  1. 41.

    After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.

  1. 42.

    If a new transmission or a new main control was installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .

  1. 43.

    If the transmission was overhauled, the adaptive drive cycle must be updated. Refer to: Adaptive Learning Drive Cycle .

  1. 44.

    While driving the vehicle, use the scan tool to verify that the TFT has reached a temperature of 96.7°C-102°C (206°F-215°F). This will circulate the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system.

  1. 45.

    Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
