Transfer Case Draining and Filling
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Materials
| Name | Specification |
|---|---|
| Motorcraft® Transfer Case Fluid XL-12 | ESP-M2C166-H |
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | MERCON® LVWSS-M2C938-A |
Draining
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
- 1.

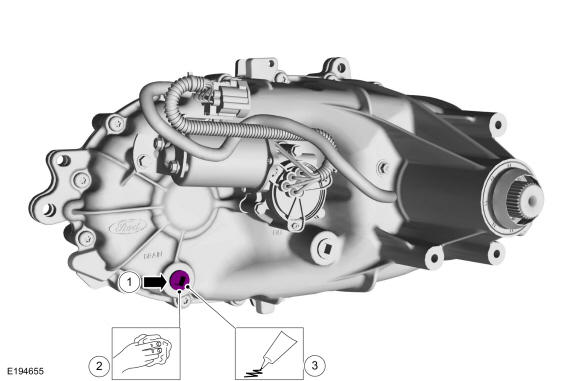

Remove the drain plug and drain the fluid.
- 2.
Clean the drain plug and the area around drain plug.
- 3.
Apply thread sealant to the drain plug threads and install the drain plug.Torque
: 133 lb.in (15 Nm)
- 1.
Filling
- 2.

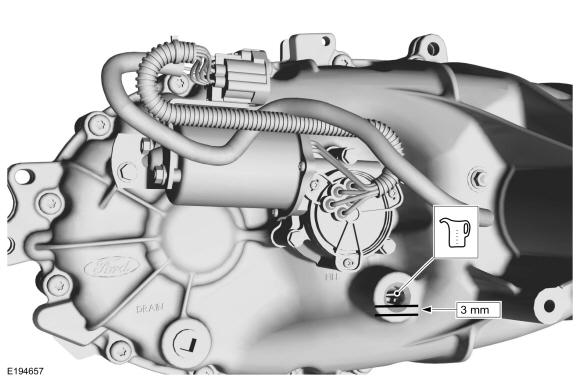

Fill the transfer case with 1.4L (2.9 pt) of clean fluid. The transfer case fluid must be within 10 mm (0.393 in) below the fill plug hole.- Electronic Shift-On-The-Fly (ESOF) transfer case.
Material
: Motorcraft® Transfer Case Fluid / XL-12 (ESP-M2C166-H)
- 2-Speed Torque-on-Demand transfer case.
Material
: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)
- Electronic Shift-On-The-Fly (ESOF) transfer case.
- 3.
- 1.

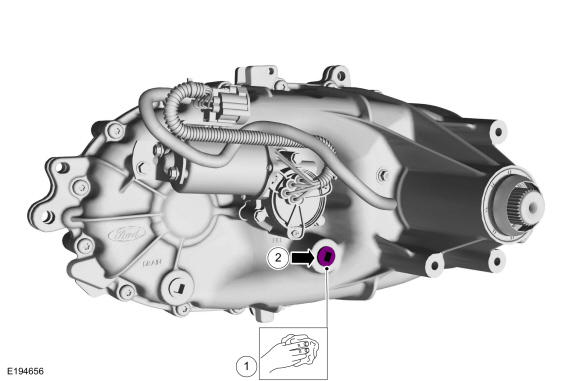

Apply thread sealant to the fill plug threads.
- 2.

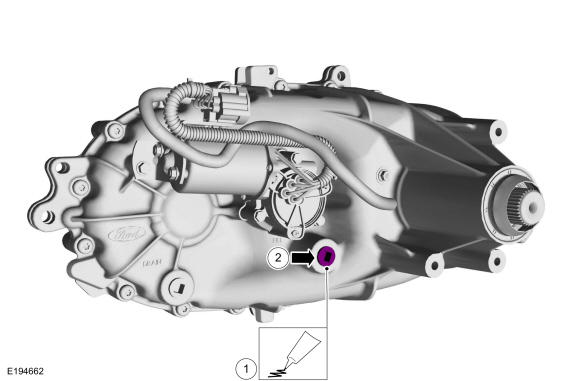

Install the fill plug.Torque
: 133 lb.in (15 Nm)
- 1.
