Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2012 Ford F550 Super Duty and 2012 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the TR sensor and detent lever assembly.
1. Connect the park rod to the detent lever assembly.
2. Install the TR sensor and the detent lever assembly.
3. Loosely install the bolts.

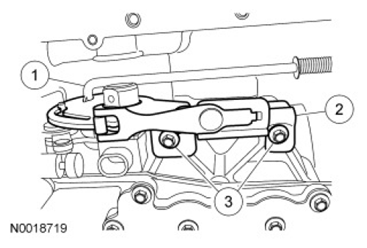

  Fig 1: Installing TR Sensor And Detent Lever Assembly
  Courtesy of FORD MOTOR CO.
Install the manual control lever shaft.

Fig 2: Locating Manual Control Lever Shaft
Courtesy of FORD MOTOR CO.

NOTE: Leave a small portion of the pin exposed.

Fig 3: Locating Manual Valve Detent Lever Shaft Retaining Pin

Courtesy of FORD MOTOR CO.

Install the manual control lever shaft retaining pin into the case.

NOTE: When the manual control valve detent lever shaft retaining pin is installed correctly, 2 mm (0.078 in) of the pin will be exposed.

Fig 4: Locating Manual Control Valve Detent Lever Shaft Retaining Pin

Courtesy of FORD MOTOR CO.

Install a new manual control valve detent lever shaft retaining pin.
Torque the two Transmission Range Sensor (TRS) Bolts to Specificaiton: 10 Nm (89 lb-in).

Fig 5: Locating Bolts On Transmission Range (TR) Sensor
Courtesy of FORD MOTOR CO.
Connect the TR sensor.

Fig 6: Locating Transmission Range Sensor
Courtesy of FORD MOTOR CO.
Connect the selector lever cable end.

Fig 7: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
Adjust the selector lever cable. Verify that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
