Selector Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Transmission - 2.0L Duratec-HE  .
  2. Special Tool(s)  : 303-081 (Installer/Aligner, Pilot Bearing/Clutch Plate)

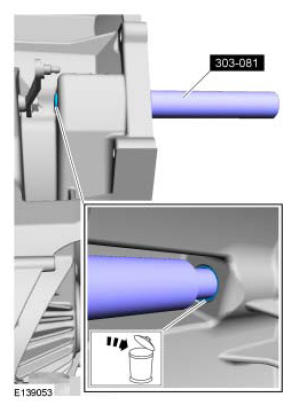

    Fig 1: Removing Selector Shaft Seal Pilot Bearing/Clutch Plate Using Special Tools
    G08064205Courtesy of FORD MOTOR CO.

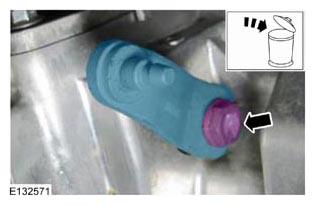

  3. Fig 2: Identifying Selector Shaft Seal Bolt
    G07979767Courtesy of FORD MOTOR CO.
    1. Install the Special Tool(s)  : 307-670 (Remover/Installer, Shift Lever Seal)
    Fig 3: Installing Shift Lever Seal Using Special Tools
    G08064207Courtesy of FORD MOTOR CO.
  5. Remove the Special Tool(s)  : 307-670 (Remover/Installer, Shift Lever Seal)

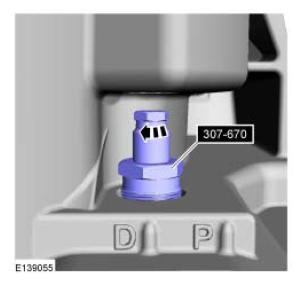

    Fig 4: Removing Shift Lever Seal Using Special Tools
    G08064208Courtesy of FORD MOTOR CO.
