Input Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
    WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.
    NOTE: Use a new seal.
    Fig 1: Installing Input Guide And Seal Using Special Tools
    G08064110Courtesy of FORD MOTOR CO.
  1. Special Tool(s)  : 307-672 (Installer, Input Guide and Seal)
  2. Torque  : 8 Nm
    Fig 2: Locating Input Shaft Seal Housing Surface Mounting Bolts
    G08064107Courtesy of FORD MOTOR CO.
  3. Refer to: Clutch Actuator  .
    4. NOTE: Use a new seal.

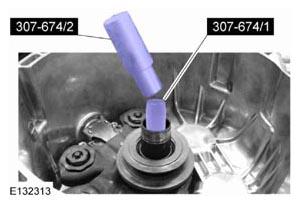

    Fig 3: Installing Outer Input Seal Using Special Tools
    G07979865Courtesy of FORD MOTOR CO.
  4. Special Tool(s)  : 307-674 (Installer, Outer Input Seal)
  5. Refer to: Clutch Unit  .

    Refer to: Transmission - 2.0L Duratec-HE  .
