Clutch Unit: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Transmission - 2.0L Duratec-HE  .
  2. Special Tool(s)  : 307-580 (Holding Fixture)

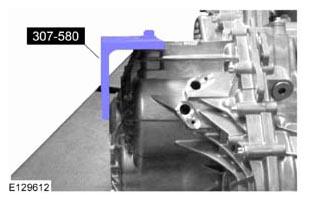

    Fig 1: Removing Clutch Unit Using Special Tools
    G07979461Courtesy of FORD MOTOR CO.
  3. NOTE: Make sure that the component terminals are not bent or damaged.

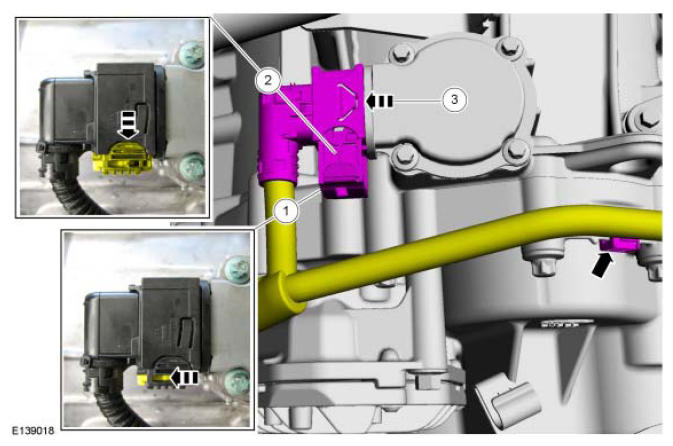

    Fig 2: Removing Clutch Unit Connector
    G08064164Courtesy of FORD MOTOR CO.
  4. NOTE: Make sure that the component terminals are not bent or damaged.

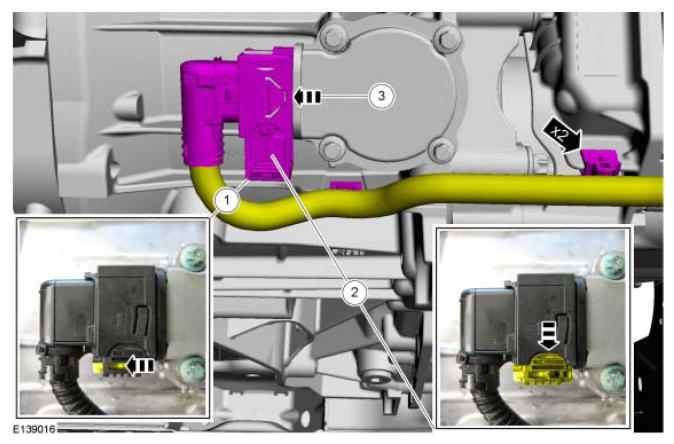

    Fig 3: Removing Clutch Unit Connector
    G08064165Courtesy of FORD MOTOR CO.
  5. Fig 4: Locating Clutch Unit Cover Bolts
    G08064166Courtesy of FORD MOTOR CO.
  6. Fig 5: Locating Clutch Unit Cover Bolts
    G08064167Courtesy of FORD MOTOR CO.
  7. Discard the specified component. Follow local disposal regulations.

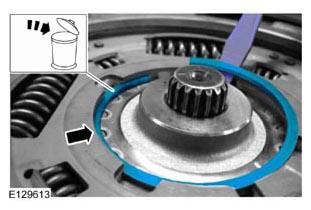

    Fig 6: Removing Clutch Unit Snap Ring
    G07979464Courtesy of FORD MOTOR CO.
  8. NOTE: Note the position of the component before removal.
    Fig 7: Locating Alignment Mark Position On Clutch Unit
    G07979465Courtesy of FORD MOTOR CO.
  9. Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)
    Fig 8: Installing Clutch Unit Using Special Tools
    G08064170Courtesy of FORD MOTOR CO.
  10. Visual check.

    Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)

    Fig 9: Checking Clutch Plate
    G08064171Courtesy of FORD MOTOR CO.
    1. NOTE: Only tighten the bolt finger tight at this stage.
    2. Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)
    3. Torque  : 5 Nm

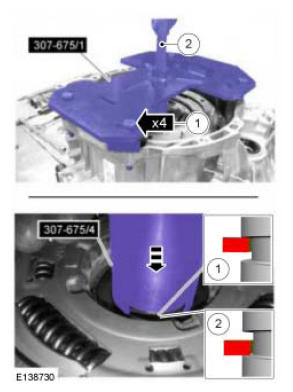

    Fig 10: Installing Clutch Unit Using Special Tools
    G08064172Courtesy of FORD MOTOR CO.
  11. Remove the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)
  12. Discard the specified component. Follow local disposal regulations.

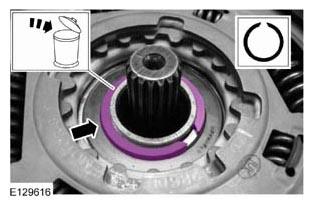

    Fig 11: Identifying Snap Ring
    G07979468Courtesy of FORD MOTOR CO.
    NOTE: Make sure the lifting legs are installed on the clutch studs marked with the stamped manufacturing mark as shown.
    NOTE: Make sure the lifting leg with the angle is in the location shown in illustration.
  13. Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)

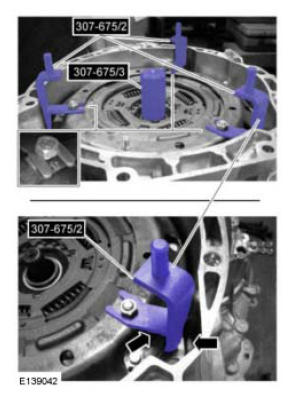

    Fig 12: Identifying Special Tools 307-675 (Fixture, Clutch Remover/Installer)
    G08064174Courtesy of FORD MOTOR CO.
  14. Turn the center bolt with approximately 5 Nm (44 lb-in) of torque until the clutch is free of the input shaft.

    Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)

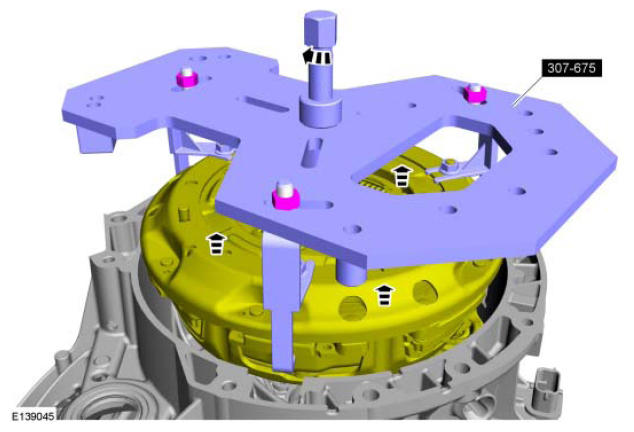

    Fig 13: Turning Center Bolt
    G08064175Courtesy of FORD MOTOR CO.
  15. Remove the clutch assembly.

    Remove the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)
