Clutch Housing: Assembly

WARNING: This page is about a different variant/trim than selected.
    NOTE: If new differential bearings, differential, clutch housing or transmission case are installed refer to the differential shim selection.
    Fig 1: Installing Differential Shim
    G08064327Courtesy of FORD MOTOR CO.
  1. Refer to: Transmission  .
  2. Special Tool(s)  : 205-118 (Differential bearing cap installer)  , 307-671 (Installer, Axle Seal)  , 204-594 (Forcing screw)

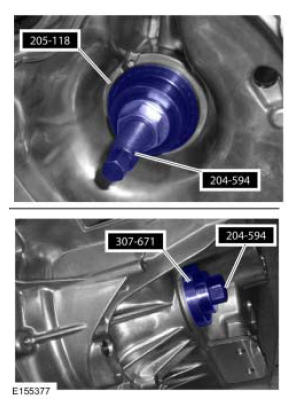

    Fig 2: Installing Differential Bearing Cap Using Special Tools
    G08064328Courtesy of FORD MOTOR CO.
  3. Fig 3: Locating Differential Bearing
    G08064329Courtesy of FORD MOTOR CO.
  4. Special Tool(s)  : 307-679 (Installer, Countershaft Needle Bearing)
    Fig 4: Installing Countershaft Needle Bearing Using Special Tools
    G08064330Courtesy of FORD MOTOR CO.
  5. Special Tool(s)  : 307-671 (Installer, Axle Seal)  , 205-153 (Handle)
    Fig 5: Installing Axle Seal Using Special Tools
    G08064331Courtesy of FORD MOTOR CO.
