Fuel Tank: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Fuel System Pressure Release
- 2.
Refer to: Battery Disconnect and Connect
- 3.
Refer to: Fuel Tank Draining
- 4.
Refer to: Rear Driveshaft

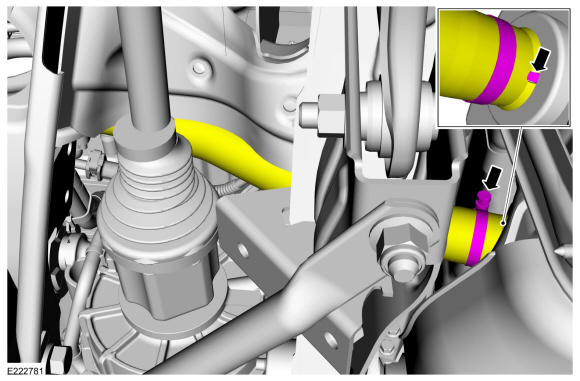

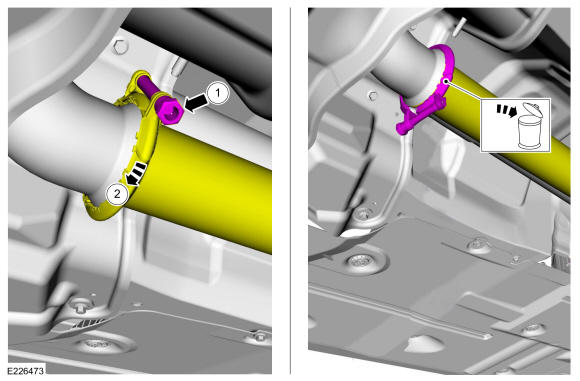

- 8.NOTE: Make sure that the clamp is installed to the same orientation as when removed.NOTE: Make sure that a new clamp is installed.

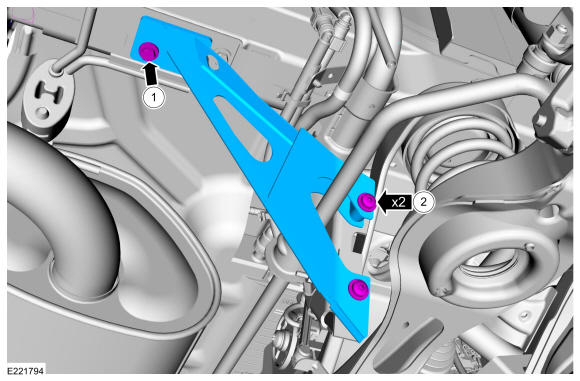

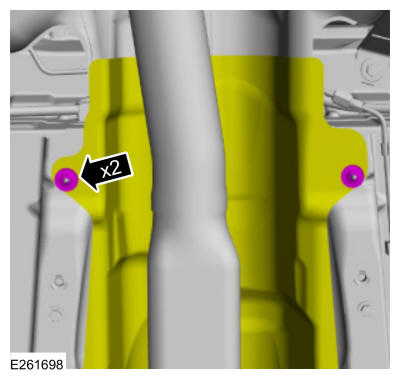

- 10.NOTE: Note the position of the components before removal.NOTE: Make sure that the components are installed to the position noted before removal.
Torque: 35 lb.in (4 Nm)

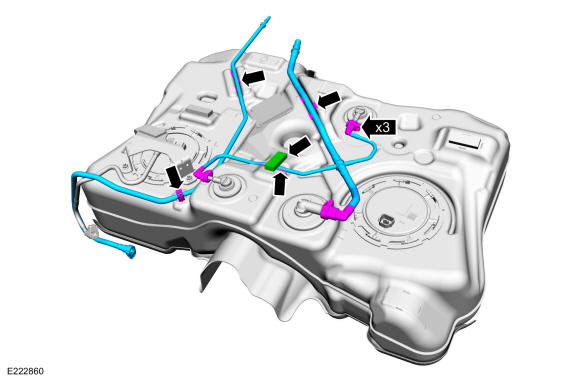

- 11.

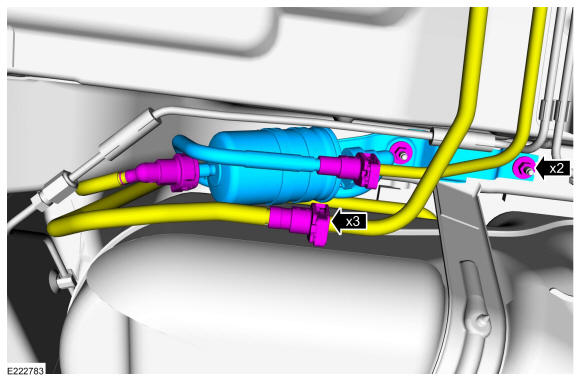

Refer to: Quick Release Coupling

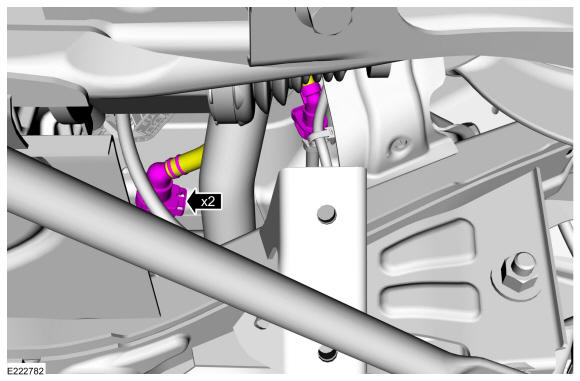

- 12.
Refer to: Quick Release CouplingTorque: 71 lb.in (8 Nm)

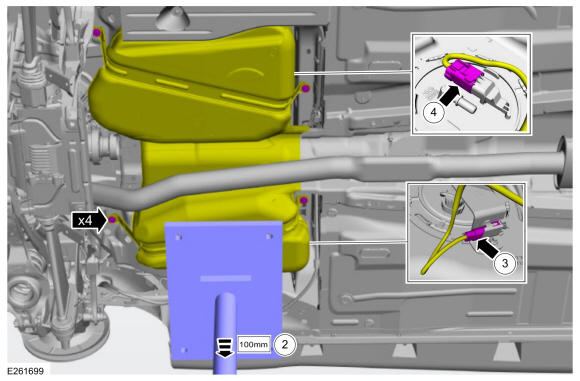

- 14.NOTE: Make sure that no components catch.
Use the General Equipment: Transmission Jack. Use the General Equipment: Wooden Block
Torque: 18 lb.ft (25 Nm)

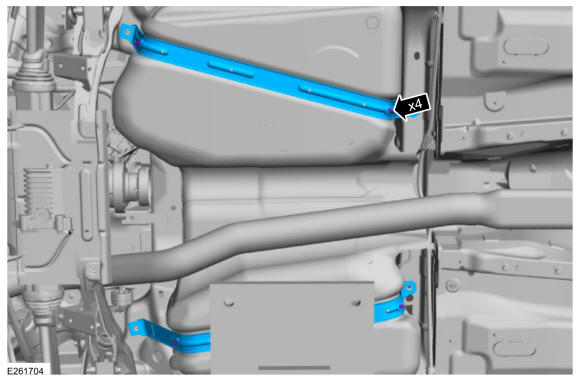

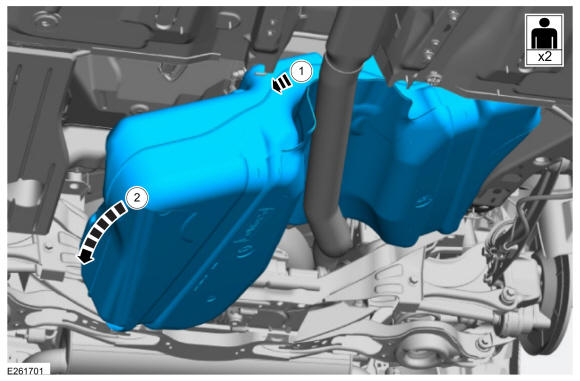

- 16.NOTE: Make sure that no components catch.NOTE: This step requires the aid of another technician.
NOTE:
The following steps are only necessary when installing a new component.
- 17.
Refer to: Quick Release Coupling
- 18.
Refer to: Fuel Pump and Sender Unit

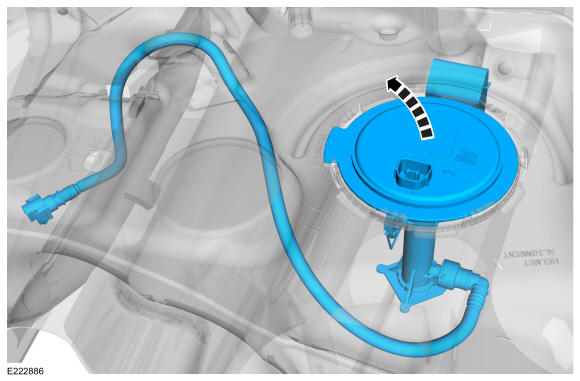

- 20.NOTE: Make sure that the installation marks are aligned.
Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.
