Fuel System Pressure Release

Pressure release

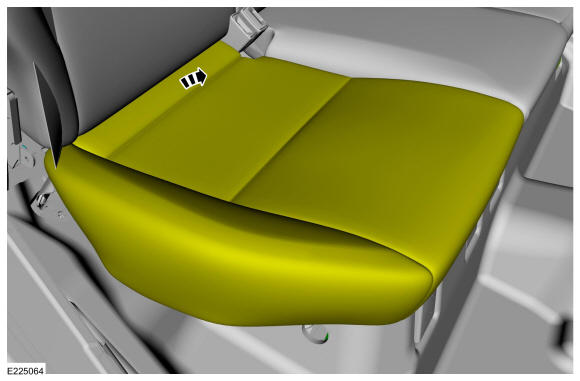

• 1.


  NOTE: For easier access to the right rear seat, position the right front seat forward.

Courtesy of FORD MOTOR COMPANY

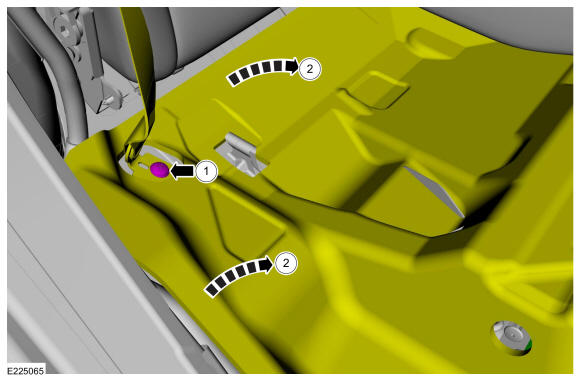

• 2.



Courtesy of FORD MOTOR COMPANY

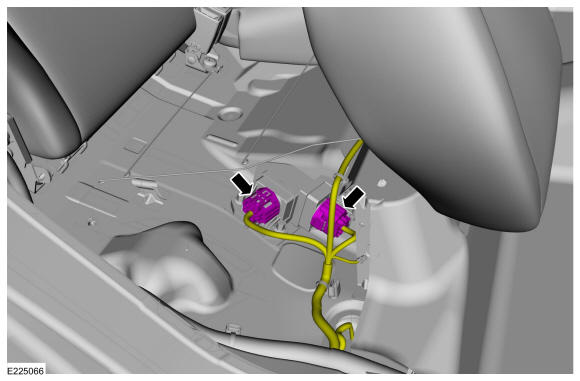

• 3.



Courtesy of FORD MOTOR COMPANY

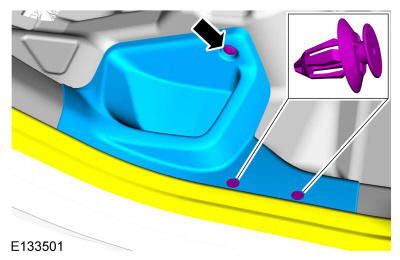

• 4.



Courtesy of FORD MOTOR COMPANY

• 5.

  Start and run the engine at idle.

• 6.

  Wait until the engine stalls.

• 7.

  Crank the engine for approximately 5 seconds to release the fuel pressure.

• 8.

  Turn the ignition switch to the off position.

• 9.



Courtesy of FORD MOTOR COMPANY

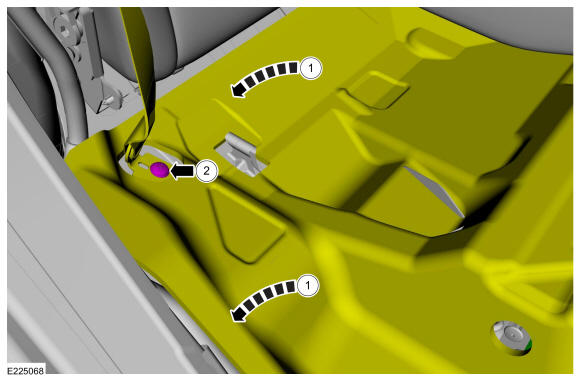

• 10.

  Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

• 11.



Courtesy of FORD MOTOR COMPANY

• 12.



Courtesy of FORD MOTOR COMPANY

• 13.


  WARNING: Fuel may remain pressurized in some fuel lines after the Fuel System Pressure Release procedure. Wear safety gloves and a face shield when disconnecting pressure lines to avoid skin and eye contact. Failure to follow this instruction may result in serious personal injury.
  NOTE: After installation, make sure the safety belt is not twisted. Also make sure the safety belts and buckles are accessible to the occupant.

  Always wrap the fuel line connection with a towel before disconnecting it.

• 14.


  NOTE: It may take more than one key cycle to pressurize the fuel system.

  Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.

• 15.

  When service on the fuel system is complete, start the engine and check for leaks.
