Input Shaft Seal: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions
- 2.
Remove the transmission. REFER to: Transmission - 2.0L EcoBoost (184kW/250PS) - MI4
- 4.NOTE: Take extra care not to damage the bearing.

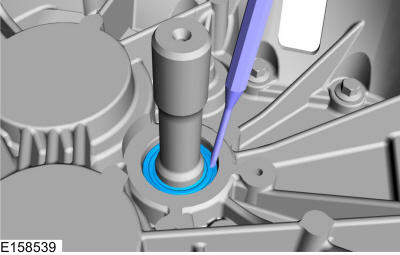

Using a punch, poke a hole in the input shaft seal.
- 5.
- 1.

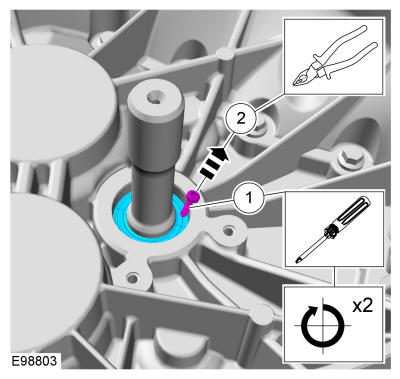

Using a 2.5 x 15 mm self-tapping screw, thread a 2.5 x 15 mm self tapping screw into the input shaft seal 2 complete turns.
- 2.
Using a pair of pliers, pull on the screw and remove the seal.
- 1.
