Halfshaft Seal RH: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Make sure new component is installed.

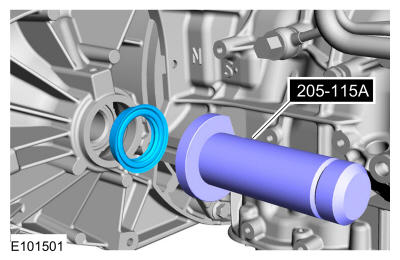

Install the halfshaft seal. Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Do not fully install the halfshaft at this time.

Install the splines of the intermediate shaft in the transmission, remove the seal protector.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

Connect the following items:
1. Install the intermediate shaft bearing retaining cap.
2. Install the lower intermediate shaft bearing retaining cap nut.
  Torque: 44 lb.in (5 Nm)
3. Install the upper intermediate shaft bearing retaining cap nut.
  Torque: 44 lb.in (5 Nm)
4. Tighten the nut.
  Torque: 18 lb.ft (25 Nm)
5. Tighten the nut.
  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

4.

Install the RH ball joint in the knuckle, the bolt and the nut.
Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Install the RH brake hose and the retainer.

Courtesy of FORD MOTOR COMPANY

7.

Refer to: Transmission Fluid Level Check

8.

Install the TC outline pipe.
- 1.

  Install the TC outlet pipe and the bracket bolts.
- 2.

  Tighten the TC outlet pipe clamps.

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  Install the underbody shield.
- 2.

  Install the air deflector.

Courtesy of FORD MOTOR COMPANY
