Transmission Fluid Level Check

Materials

Check

• 1.

  Refer to: HEALTH AND SAFETY PRECAUTIONS

• 2.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

• 3.

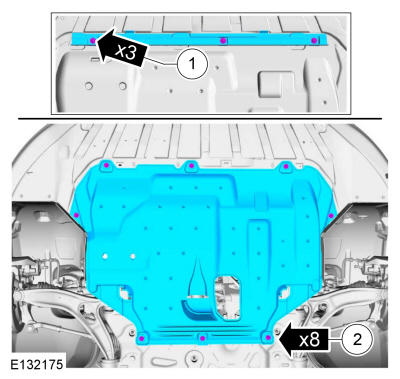

  If equipped. Remove the underbody shield.

  • 1.

    Remove the air deflector.

  • 2.

    Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

• 4.


  WARNING: Be prepared to collect escaping fluid.

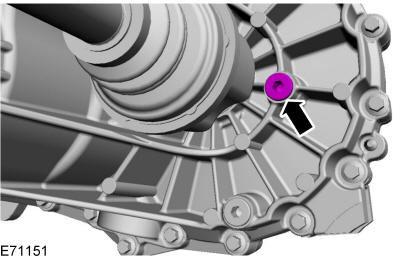

  Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

• 5.

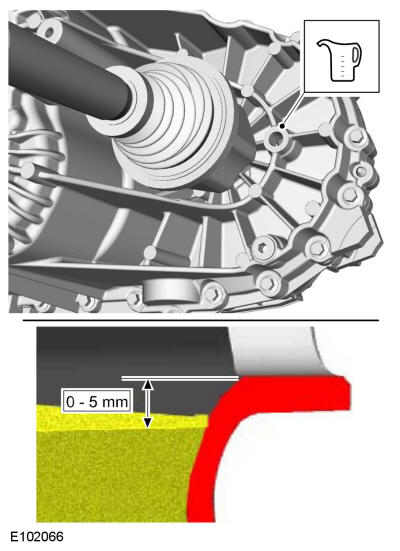

  Add or remove transmission fluid as necessary.

  Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY

• 6.

  Install the fill plug.

  Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

  If equipped. Install the underbody shield.

  • 1.

    Install the underbody shield.

  • 2.

    Install the air deflector.

Courtesy of FORD MOTOR COMPANY

• 8.

  Lower the Vehicle.
