Halfshaft Seal LH: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

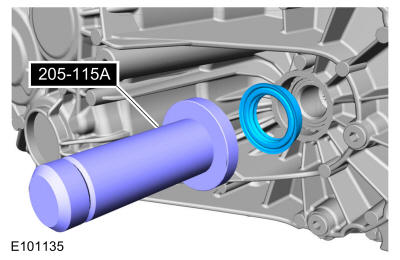

Install the halfshaft seal. Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.

GFD63047

Courtesy of FORD MOTOR COMPANY

2.

Install the LH halfshaft. REFER to: Front Halfshaft LH

3.

Check the transmission fluid level. REFER to: Transmission Fluid Level Check

4.
- 1.

  Install the underbody shield.
- 2.

  Install the air deflector.

GFD61488

Courtesy of FORD MOTOR COMPANY

5.

Lower the Vehicle.
