Hood Latch Release Handle - Primary

Hood Latch Release Handle - Primary

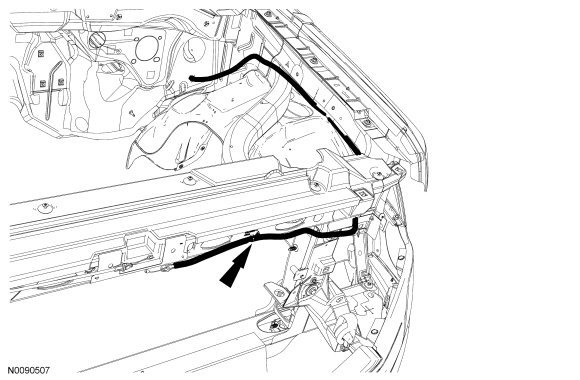

Primary Hood Latch Release Cable Routing





Removal and Installation

1. Remove the hood latch. For additional information, refer to Hood Latch Hood Latch.

2. Remove the air cleaner element.

3. Remove the degas bottle bolts and position the degas bottle assembly aside.

4. Remove the cowl side trim panel.

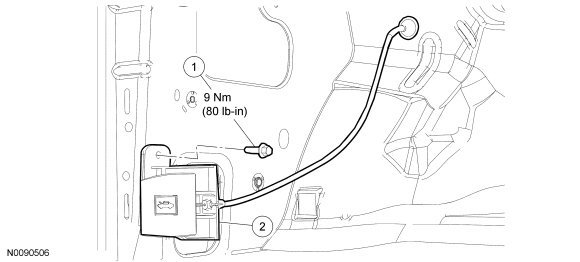

5. Remove the primary hood latch release handle bolt.
- To install, tighten to 9 Nm (80 lb-in).


6. Release the cable locators and remove the primary hood latch release cable.

7. To install, reverse the removal procedure.
- When the hood latch is installed, the latch adjustment must be checked to make sure the latch is installed and aligned correctly.
