Standard Tailgate
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

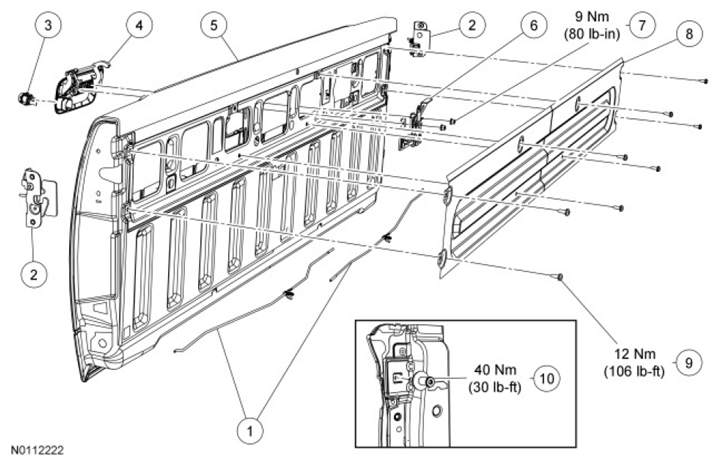

Fig 1: Exploded View Of Tailgate Handle, Tailgate Lock And Tailgate Latches With Torque Specifications (Standard Tailgate)
| Item | Part Number | Description |
|---|---|---|
| 1 | 431A78 | Tailgate latch actuating rods (2 required) |
| 2 | 43150 | Tailgate latch (2 required) |
| 3 | 21990 | Tailgate lock cylinder |
| 4 | 43400 | Tailgate release handle |
| 5 | 40700 | Tailgate |
| 6 | 43170 | Tailgate remote control |
| 7 | N621906 | Tailgate latch remote control nuts (2 required) |
| 8 | 43121 | Tailgate access panel |
| 9 | W710734 | Tailgate access panel screws (8 required) |
| 10 | 404A42 | Tailgate latch striker |
