Hood Latch: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

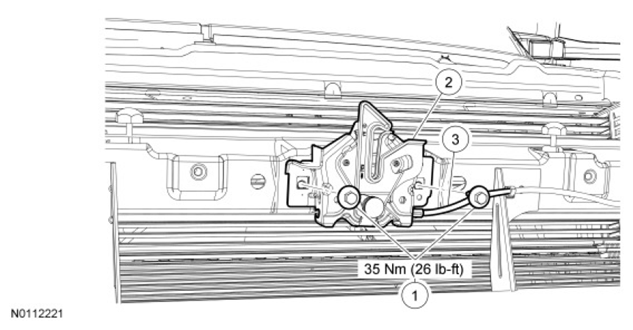

Fig 1: Hood Latch With Torque Specifications
G07486138Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711848 Hood latch bolts (2 required)
2 16700 Hood latch
3 16916 Hood latch release cable (2 pieces)
