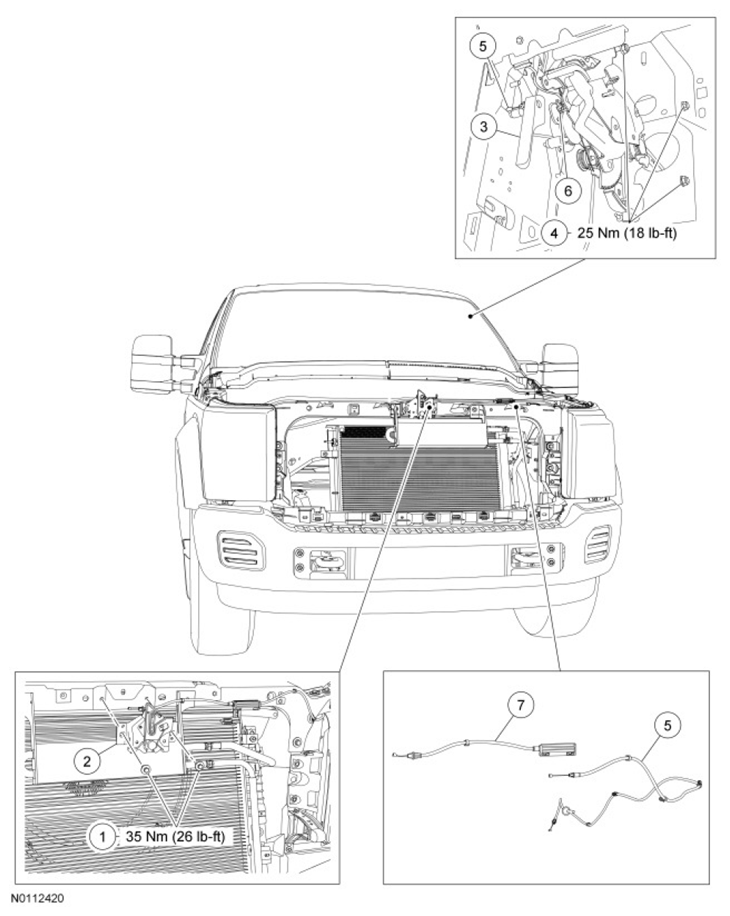

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Hood and grille are removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | W711848 | Hood latch bolts (2 required) |
| 2 | 16700 | Hood latch |
| 3 | 16916 | Hood latch release handle (part of parking brake control) |
| 4 | W711468 | Parking brake control nuts (3 required) |
| 5 | 16916 | Hood latch release cable A |
| 6 | - | Hood latch release handle E-clip |
| 7 | 16916 | Hood latch release cable B |
- For additional information, refer to the procedures in this article.
