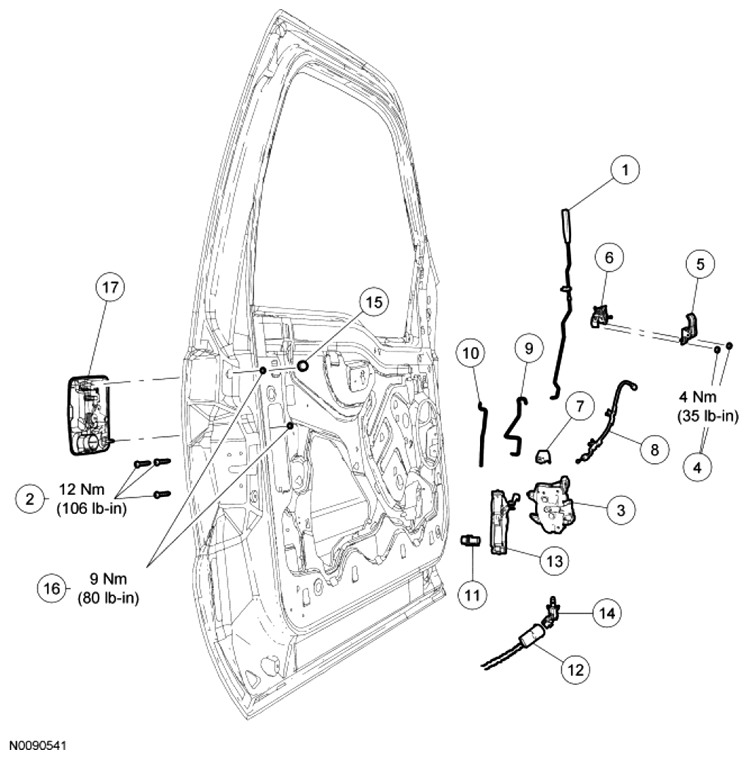

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH door shown, RH door similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 21852/21853 | Push button rod (RH/LH) |
| 2 | N811471 | Door latch screws (3 required) |
| 3 | 21812/21813 | Door latch (RH/LH) |
| 4 | W620391 | Interior front door handle nuts (2 required) |
| 5 | 22600/22601 | Interior front door handle (RH/LH) |
| 6 | 21818/21819 | Door latch remote control (RH/LH) |
| 7 | 221A06/221A07 | Front door latch cable water seal (RH/LH) |
| 8 | 221A00 | Front door latch actuating cable |
| 9 | 22134/22135 | Door lock cylinder actuating rod (RH/LH) |
| 10 | 22152/22153 | Exterior door handle actuating rod (RH/LH) |
| 11 | - | Door lock actuator electrical connector (part of 14630/14631) |
| 12 | - | Door ajar switch electrical connector (part of 14630/14631) |
| 13 | 218A42/218A43 | Door lock actuator (RH/LH) |
| 14 | 14018/13713 | Door ajar switch (RH/LH) |
| 15 | - | Body plug |
| 16 | N621906 | Exterior front door handle nuts (2 required) |
| 17 | 22404/22405 | Exterior front door handle (RH/LH) |
- For additional information, refer to the procedures in this article.
