Side Lamp/Front Turn Signal Lamp Bulb

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

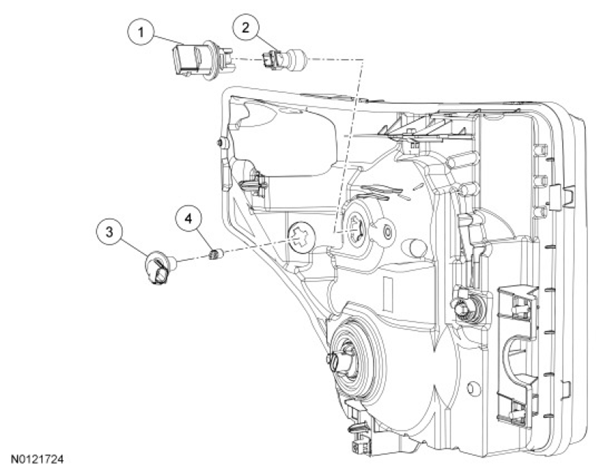

Fig 1: Identifying Side Lamp/Front Turn Signal Lamp Bulb Related Components
G07485162Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13411 Front turn signal lamp bulb holder
2 13466 Front turn signal lamp bulb
3 13411 Side lamp bulb holder
4 13466 Side lamp bulb
  1. Remove the headlamp assembly for access to the headlamp bulbs. For additional information, refer to HEADLAMP ASSEMBLY .
    • Rotate the bulb holder counterclockwise approximately one-eighth turn to remove the bulbs.
