Headlamp Assembly
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

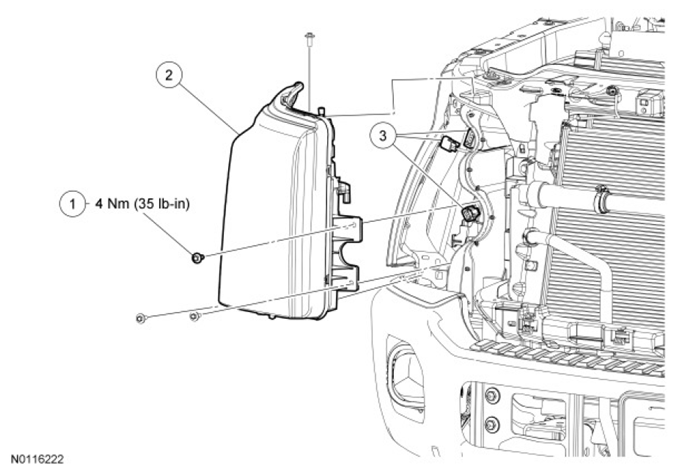

| Item | Part Number | Description |
|---|---|---|
| 1 | W714527 | Headlamp assembly bolts (4 required) |
| 2 | 13008 | Headlamp assembly |
| 3 | - | Headlamp assembly electrical connectors (part of 12A581) |
NOTE:
Make sure the headlamp switch and the ignition switch are in the OFF position.
- Remove the radiator grille for access to the headlamp bolts. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .
