Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
NOTE: The quick connect coupling illustrated is to show the spring clip release location only. The quick connect coupling on the hose may differ.

Pull the upper radiator hose spring clip up until the end of the clip is in the detent on the quick connect coupling. Disconnect the upper radiator hose from the coolant outlet connection.
- To install, push the spring clip in place and connect the upper radiator hose quick connect coupling, making sure the coupling is secure.
Fig 1: Locating Degas Bottle-To-Engine Hose Quick Connect Coupling Spring Clip
Courtesy of FORD MOTOR CO.
Remove the three bolts and the coolant outlet connection.
- NOTE: During installation, make sure the coolant outlet connection is fully seated on the coolant crossover manifold assembly before tightening the bolts.

  To install, tighten to 10 Nm (89 lb-in).
Remove the thermostat assembly.
- To install, position the thermostat with the bleed hole toward the engine.

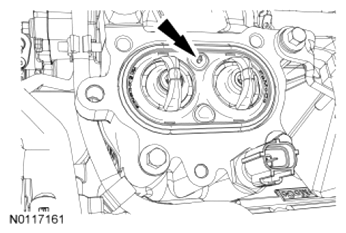

  Fig 2: Locating Thermostat Bleed Hole
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
NOTE: Evaluate the cooling system condition before filling the cooling system. Failure to follow these instructions can damage the engine.

Evaluate the cooling system condition. For additional information, refer to COOLING SYSTEM CONDITION EVALUATION .
