Cooling System Condition Evaluation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following table to evaluate the cooling system condition and choose the correct procedure to restore the system.

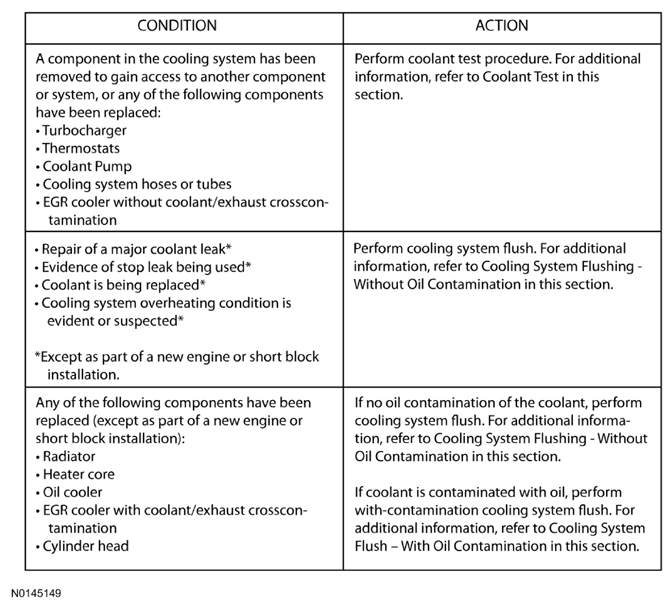

    Fig 1: Cooling System Condition Evaluation Chart
    G07970873Courtesy of FORD MOTOR CO.
