Start/Stop Switch: Removal

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

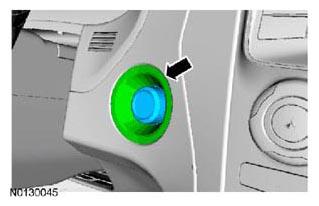

  1. Using an appropriate trim tool, separate the start/stop switch bezel from the instrument panel.
    G07420831

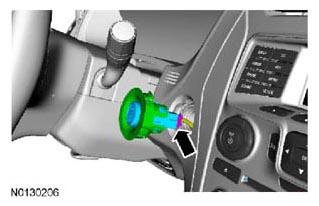

  2. Disconnect the electrical connector and remove the start/stop switch and bezel.
    G07420832
  3. Using a pocket screwdriver (or similar tool), disengage the 4 retainer tabs and separate the start/stop switch from the bezel.
    G07420833
