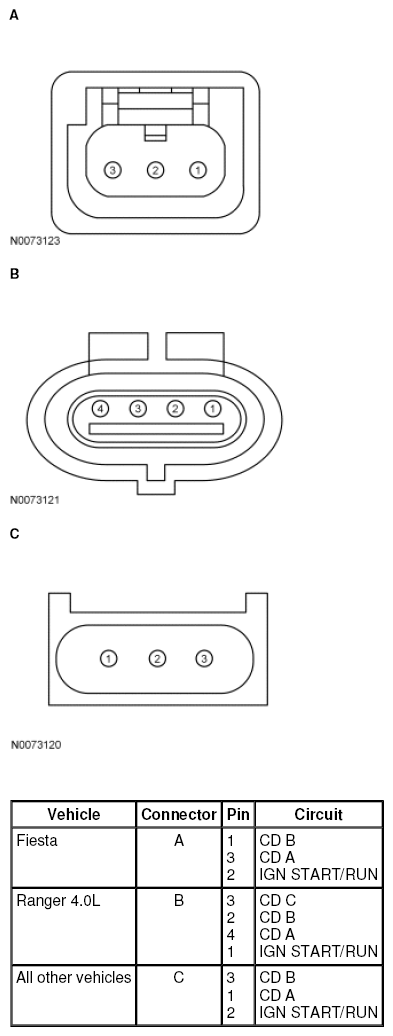

Pinpoint Test Schematics and Connectors
For PCM connector views or reference values, refer to REFERENCE VALUES .
IGNITION COIL TO CYLINDER CORRELATION
| Vehicle | Related DTC | Cylinder Number | Ignition Coil | Coil Driver (CD) | PCM Pin |
|---|---|---|---|---|---|
| Fiesta | P0351 | 1 | A | A | T24 |
| P0352 | 2 | B | B | T16 | |
| P0352 | 3 | B | B | T16 | |
| P0351 | 4 | A | A | T24 | |
| 2.3L Ranger | P0351 | 1 | A | A | E17 |
| P0352 | 2 | B | B | E12 | |
| P0352 | 3 | B | B | E12 | |
| P0351 | 4 | A | A | E17 | |
| 4.0L Ranger | P0351 | 1 | A | A | E17 |
| P0353 | 2 | C | C | E16 | |
| P0352 | 3 | B | B | E12 | |
| P0352 | 4 | B | B | E12 | |
| P0351 | 5 | A | A | E17 | |
| P0353 | 6 | C | C | E16 |
