Pinpoint Test E: Transaxle Solenoid Pressure Control Circuit

WARNING: This page is about a different variant/trim than selected.
NOTE: Refer to the TRANSAXLE VEHICLE HARNESS CONNECTOR  illustration within the Transaxle Connector Layouts procedure  in this service information.
  1. E1 CHECK FOR VOLTAGE AT THE TRANSAXLE VEHICLE HARNESS CONNECTOR
    • Disconnect: Transaxle Vehicle Harness C168A.
    • Use a mirror to inspect both ends of the connector for damage or pushed-out pins, corrosion, loose wires and missing or damaged seals.
    • Ignition ON.
    • Measure the voltage between the transaxle vehicle harness C168A-5, circuit CET25 (BU/GN) and ground.

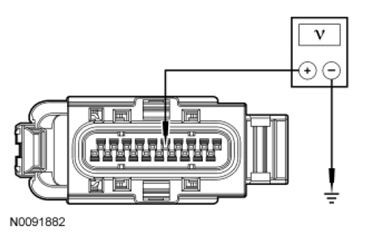

      Fig 1: Measuring Voltage Between Transaxle Vehicle Harness C168A-5, Circuit CET25 (BU/GN) And Ground
      G07443780Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    1. Yes:  INSTALL a new Transaxle Pressure Control Solenoid. Refer to SOLENOIDS  in this service information. RECONNECT all components. TEST the system for normal operation.
    2. No:  Go to E2  .
  2. E2 CHECK THE TRANSAXLE SOLENOID PRESSURE CONTROL CIRCUIT FOR AN OPEN
    • Ignition OFF.
    • Disconnect: PCM Transaxle Harness C175T.
    • Measure the resistance between the PCM transaxle C175T-50, circuit CET25 (BU/GN) and transaxle vehicle harness C168A-5, circuit CET25 (BU/GN).

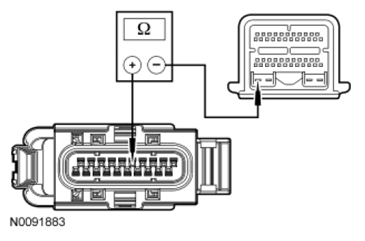

      Fig 2: Measuring Resistance Between PCM Transaxle C175T-50, Circuit CET25 (BU/GN) And Transaxle Vehicle Harness C168A-5, Circuit CET25 (BU/GN)
      G07443781Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    1. Yes:  Go to E3  .
    2. No:  REPAIR circuit CET25 (BU/GN) for an open. RECONNECT all components. TEST the system for normal operation.
  3. E3 CHECK THE TRANSAXLE SOLENOID POWER CONTROL CIRCUIT FOR A SHORT TO GROUND
    • Measure the resistance between the transaxle vehicle harness C168A-5, circuit CET25 (BU/GN) and ground.

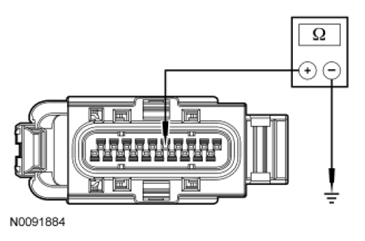

      Fig 3: Measuring Resistance Between Transaxle Vehicle Harness C168A-5, Circuit CET25 (BU/GN) And Ground
      G07443782Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    1. Yes:  INSTALL a new PCM. Refer to ELECTRONIC ENGINE CONTROLS - 2.5L article or ELECTRONIC ENGINE CONTROLS - 3.0L (4V) article. RECONNECT all components. TEST the system for normal operation.
    2. No:  REPAIR circuit CET25 (BU/GN) for a short to ground. RECONNECT all components. TEST the system for normal operation.
