Transaxle Vehicle Harness - C168A
WARNING: This page is about a different variant/trim than selected.

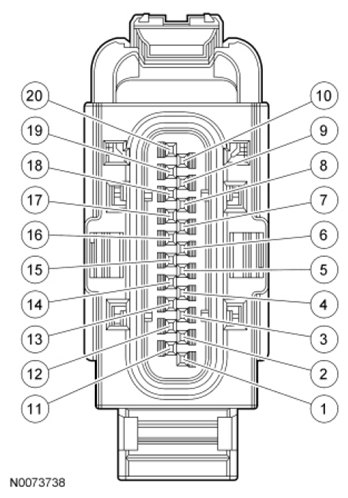

PIN NUMBER REFERENCE CHART
| Pin Number | Circuit Function |
|---|---|
| 1 | Transmission Fluid Temperature (TFT) signal return |
| 2 | TFT sensor |
| 3 | Pressure Control Solenoid A (PCA) |
| 4 | Shift Solenoid C (SSC) |
| 5 | Transaxle solenoid power control voltage |
| 6 | Torque Converter Clutch (TCC) solenoid |
| 7 | ON/OFF Shift Solenoid E (SSE) |
| 8 | Shift Solenoid A (SSA) |
| 9 | Shift Solenoid B (SSB) |
| 10 | Shift Solenoid D (SSD) |
| 17 | Transmission Range (TR) Signal |
| 18 | TR and Output Shaft Speed (OSS) sensor power |
| 19 | OSS sensor signal |
| 20 | TR / OSS sensor ground |
