Tire Pressure Monitoring System (TPMS) Strap and Cradle: Material

MATERIAL SPECIFICATIONS

Item	Specification
Wheel and Tire Cleaner ZC-37-A	-

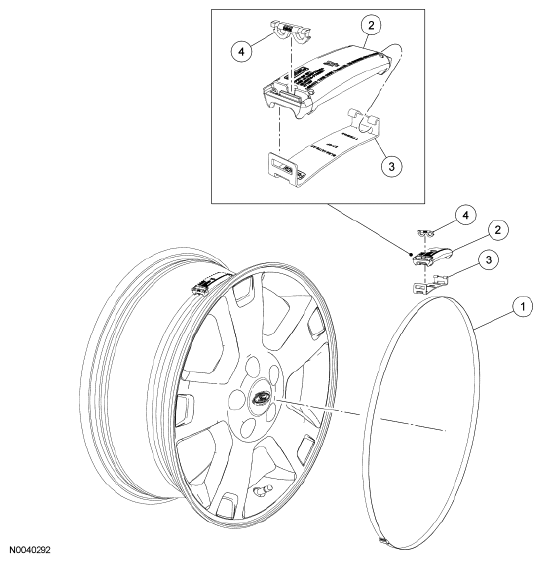

Fig 1: Identifying Tire Pressure Monitoring System Strap And Cradle Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	1A177/1A193	Strap/strap kit
2	1A150/1A189	Tire pressure sensor/sensor kit
3	1A175	Sensor cradle (also part of 1A193)
4	14C202	Locking clip (also part of 1A189)
