Tire Pressure Monitoring System (TPMS) Sensor: Notes

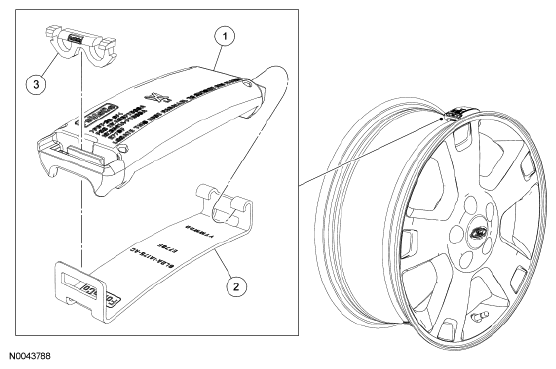

Fig 1: Identifying Tire Pressure Monitoring System Sensor
G06064954Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 1A150/1A189 Tire pressure sensor/sensor kit
2 1A175 Sensor cradle
3 14C202 Locking clip (also part of 1A189)
