Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear wiper pivot arm nut cover.

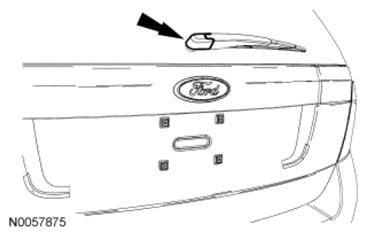

Fig 1: Locating Rear Wiper Pivot Arm Nut Cover
Courtesy of FORD MOTOR CO.
Remove the nut and the rear wiper pivot arm.
- To install, tighten to 12 Nm (106 lb-in).

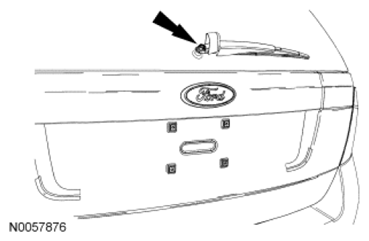

  Fig 2: Locating Rear Wiper Pivot Arm Nut
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- To adjust the rear wiper pivot arm, refer to WIPER BLADE AND PIVOT ARM ADJUSTMENT - REAR WINDOW .
