Wiper Blade and Pivot Arm Adjustment - Rear Window
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Cycle and park the rear window wiper.

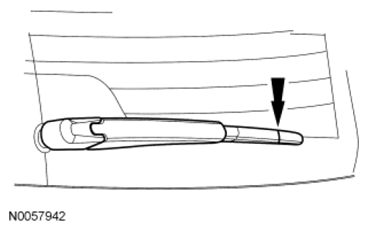

- Verify that the rear wiper blade is positioned at the first defroster line located on the rear window glass.
- If necessary, remove the rear wiper pivot arm nut and the rear wiper pivot arm and reposition it to the correct location.
- To install, tighten to 12 Nm (106 lb-in).
