Bumper - Rear

All vehicles

1. Remove the rear bumper cover. For additional information, refer to BUMPER COVER - REAR .

   Without trailer tow

2. Remove the 6 bumper mounting nuts (3 each side).
   • To install, tighten to 25 Nm (18 lb-ft).

   With trailer tow

3. Remove the 2 underbody heat shields.
   • Remove the 6 screws (3 each side).
   • Remove the 2 pushpin retainers (1 each side).
   • Disconnect the wiring harness from the heat shield.

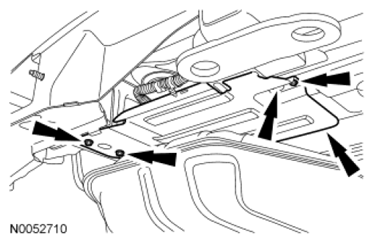

     Fig 1: Locating Underbody Heat Shields Retainers

     Courtesy of FORD MOTOR CO.
4. Remove the 4 inside rear bumper bolts (2 each side) and the 2 nuts (1 each side).
   • To install, tighten rear bumper bolts to 90 Nm (66 lb-ft).
   • To install, tighten rear bumper nuts to 25 Nm (18 lb-ft).

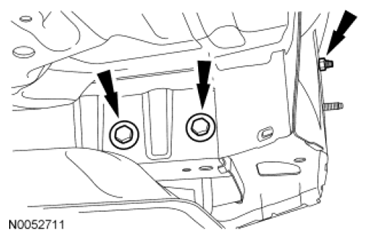

     Fig 2: Locating Inside Rear Bumper Bolts

     Courtesy of FORD MOTOR CO.
5. Remove the 2 rear center bumper bolts.
   • To install, tighten to 40 Nm (30 lb-ft).

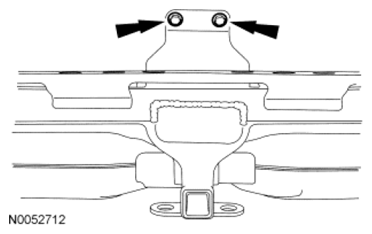

     Fig 3: Locating Rear Center Bumper Bolts

     Courtesy of FORD MOTOR CO.

   All vehicles

6. Remove the rear bumper.
7. To install, reverse the removal procedure.
