Bumper Cover - Rear

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: MKX shown, Edge similar.

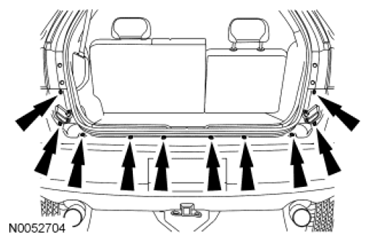

Fig 1: Locating Rear Bumper Cover Scrivets

Courtesy of FORD MOTOR CO.

Remove the scrivets from the rear bumper cover.
Remove the 10 screws (5 each side) from the rear splash shield.

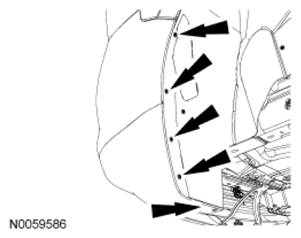

Fig 2: Locating Rear Splash Shield Screws
Courtesy of FORD MOTOR CO.
Remove the rear bumper cover-to-body brace screw.

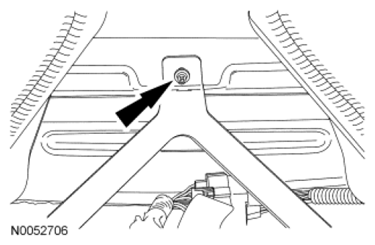

Fig 3: Locating Rear Bumper Cover-To-Body Brace Screw
Courtesy of FORD MOTOR CO.
Disconnect the trailer hitch and parking aid system wiring harness, if equipped.

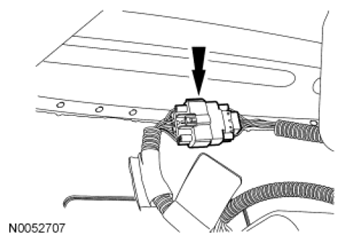

Fig 4: Locating Trailer Hitch And Parking Aid System Wiring Harness
Courtesy of FORD MOTOR CO.
Disconnect the retainers from the rear bumper cover-to-body brace.

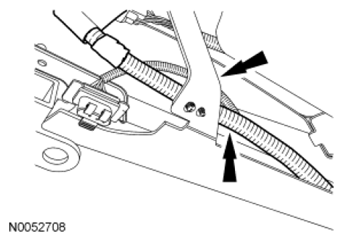

Fig 5: Locating Rear Bumper Cover Retainers
Courtesy of FORD MOTOR CO.
Remove the rear bumper cover.
- Remove the bumper cover from the bumper cover bracket.
- Remove the bumper cover.

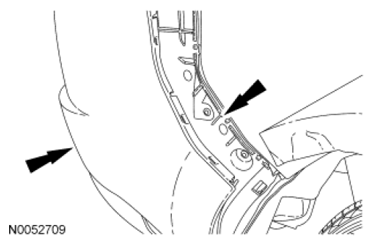

  Fig 6: Locating Bumper Cover Bracket
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
