Bumper - Front, Lower

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover. For additional information, refer to BUMPER COVER - FRONT .

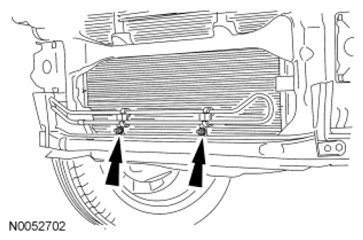

Remove the 2 nuts from the power steering cooler pipe-to-lower front bumper.
- To install, tighten to 7 Nm (62 lb-in).

  Fig 1: Locating Power Steering Cooler Pipe Nuts
  Courtesy of FORD MOTOR CO.

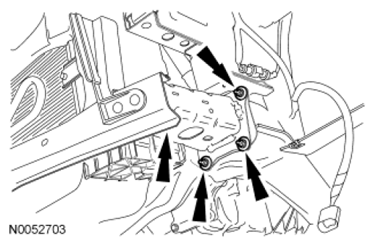

Remove the 6 bumper-to-radiator support nuts (3 each side) and remove the lower front bumper.
- To install, tighten to 25 Nm (18 lb-ft).

  Fig 2: Locating Lower Front Bumper Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
