Bumper Cover - Front

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the 2 bolts from the top of the radiator grille.

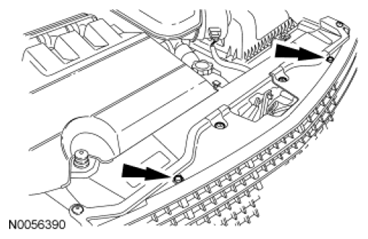

Fig 1: Locating Radiator Grille Bolts
Courtesy of FORD MOTOR CO.
Remove the 4 scrivets from the top of the radiator grille.

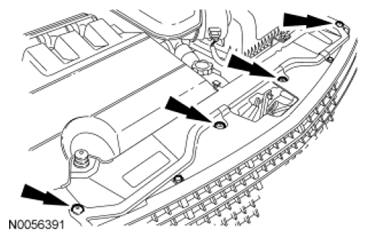

Fig 2: Locating Radiator Grille Scrivets
Courtesy of FORD MOTOR CO.
Remove the 3 lower pin-type retainers.

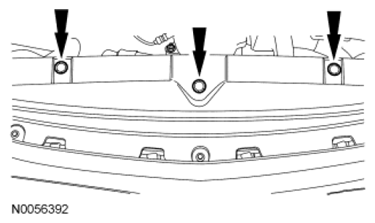

Fig 3: Locating Lower Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Remove the 6 fender splash shield screws (3 each side).

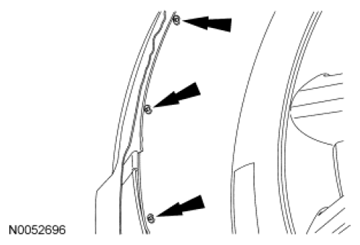

Fig 4: Locating Fender Splash Shield Screws
Courtesy of FORD MOTOR CO.
Remove the 4 lower screws (2 each side).

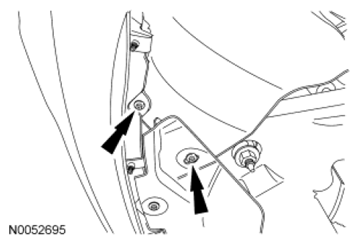

Fig 5: Locating Lower Screws
Courtesy of FORD MOTOR CO.
Disconnect the side marker lamp electrical connectors, if equipped.

Fig 6: Locating Side Marker Lamp Electrical Connectors
Courtesy of FORD MOTOR CO.
If equipped, disconnect the fog lamp electrical connectors.

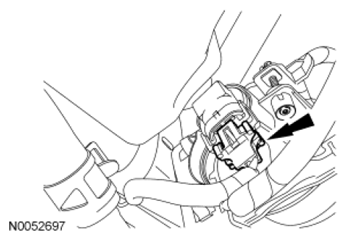

Fig 7: Locating Fog Lamp Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the front bumper cover.
- Pull the corner of the bumper cover from the bracket.

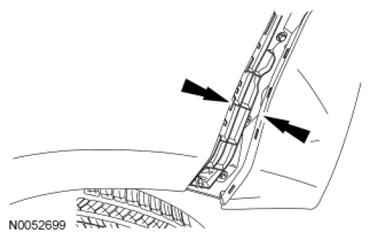

  Fig 8: Locating Front Bumper Cover
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
