Instrument Cluster (IC): Edge
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

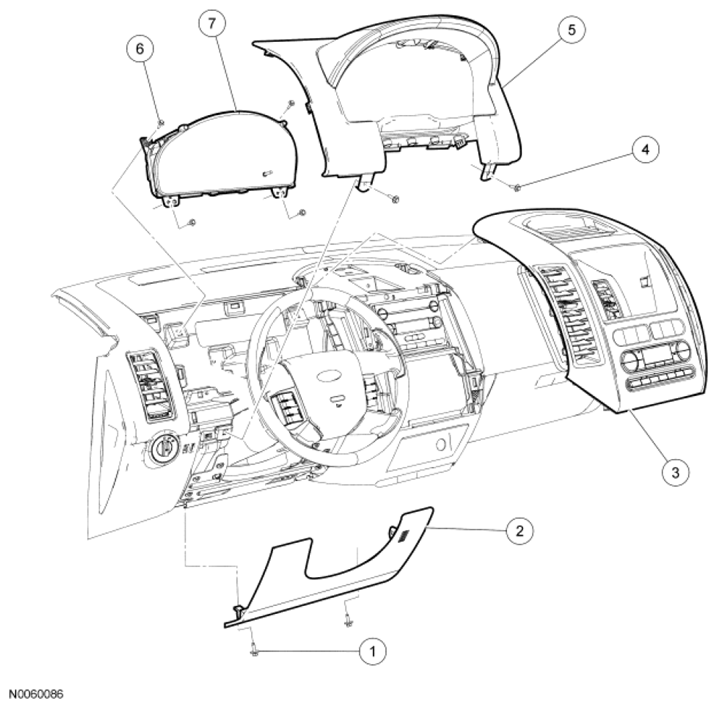

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W708268 | Lower steering column cover screws (2 required) |
| 2 | 78044F08 | Lower steering column cover |
| 3 | 78045C38 | Instrument panel center finish panel |
| 4 | W707628 | Instrument Cluster (IC) finish panel screws (2 required) |
| 5 | 78044D70 | IC finish panel |
| 6 | W705314 | IC screws (4 required) |
| 7 | 10849 | IC |
