Timing Drive Components: Removal

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.
NOTE: Failure to verify correct timing drive component alignment will result in severe engine damage.
  1. Remove the engine front cover. For additional information, refer to Removal .
  2. Remove the LH and RH spark plugs. For additional information, refer to REMOVAL AND INSTALLATION .
  3. Remove the ignition pulse wheel.
    Fig 1: Locating Ignition Pulse Wheel
    G06095525Courtesy of FORD MOTOR CO.
    NOTE: This pulse wheel is used in several different engines. Install the pulse wheel with the keyway in the slot stamped "30RFF" (orange in color).
  4. Install the crankshaft pulley bolt and washer.
    Fig 2: Identifying Crankshaft Pulley Bolt & Washer
    G06095526Courtesy of FORD MOTOR CO.
  5. Rotate the crankshaft clockwise to position the crankshaft keyway in the 11 o'clock position and position the camshafts in the correct position. This will position the No. 1 cylinder at Top Dead Center (TDC).
    • Verify that the camshafts are correctly located. If not, rotate the crankshaft one additional turn and recheck.

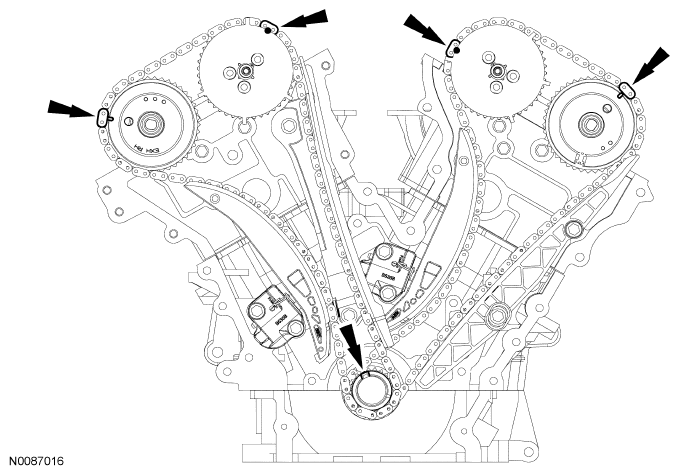

    Fig 3: Identifying Timing Mark Location
    G06095527Courtesy of FORD MOTOR CO.
  6. Rotate the crankshaft clockwise 120 degrees to the 3 o'clock position to position the RH camshafts in the neutral position.

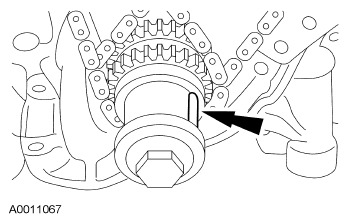

    Fig 4: Identifying Crankshaft Keyway
    G06095528Courtesy of FORD MOTOR CO.
  7. Verify that the RH camshafts are in the neutral position.

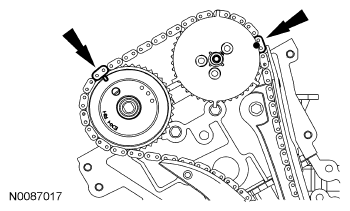

    Fig 5: Identifying Timing Mark On RH Camshafts
    G06095529Courtesy of FORD MOTOR CO.
  8. Remove the RH timing chain tensioner arm.
    1. Remove the 2 bolts.
    2. Remove the tensioner.
    3. Remove the tensioner arm.

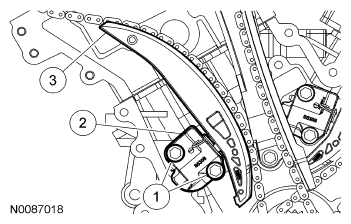

    Fig 6: Identifying RH Timing Chain Tensioner Arm With Bolts
    G06095530Courtesy of FORD MOTOR CO.
  9. Remove the 2 bolts and the RH timing chain guide.
    • Remove the RH timing chain from the engine.
    Fig 7: Locating RH Timing Chain Guide & Bolts
    G06095531Courtesy of FORD MOTOR CO.
  10. Rotate the crankcase clockwise 600 degrees (one and two-third turns) to position the crankcase keyway in the 11 o'clock position. This will position the LH camshafts in the neutral position.
    Fig 8: Locating Crankcase Keyway
    G06095532Courtesy of FORD MOTOR CO.
  11. Verify the LH camshafts are in the neutral position.

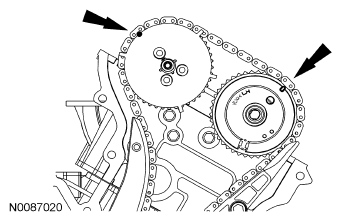

    Fig 9: Identifying Timing Mark On LH Camshafts
    G06095533Courtesy of FORD MOTOR CO.
  12. Remove the LH timing chain and tensioner arm.
    1. Remove the 2 bolts.
    2. Remove the tensioner.
    3. Remove the tensioner arm.

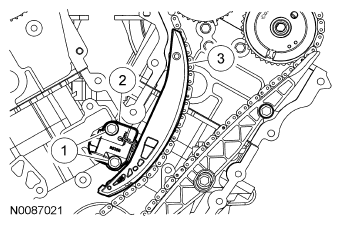

    Fig 10: Identifying LH Timing Chain & Tensioner Arm With Bolts
    G06095534Courtesy of FORD MOTOR CO.
  13. Remove the 2 bolts and the LH timing chain guide.
    • Remove the LH timing chain from the engine.
    Fig 11: Locating LH Timing Chain Guide With Bolts
    G06095535Courtesy of FORD MOTOR CO.
  14. Remove the crankshaft pulley bolt and the crankshaft sprocket.
Fig 12: Locating Crankshaft Pulley Bolt & Crankshaft Sprocket
G06263363Courtesy of FORD MOTOR CO.
