3rd Gear Torque Converter Clutch (TCC) Released

Mechanical Operation -   Apply components:

• Forward (1, 2, 3, 4) clutch
• Direct (3, 5, R) clutch

Planetary Gearset Operation -   Front planetary gearset driven components:

• Planetary carrier
• Ring gear

Center planetary gearset driven components:

• Sun gear
• Planetary carrier
• Ring gear

Rear planetary gearset driven components:

• Sun gear
• Planetary carrier
• Ring gear

Front planetary gearset held components:

• Sun gear

Center planetary gearset held components:

• None

Rear planetary gearset held components:

• None

For component information, refer to Mechanical Components and Functions .

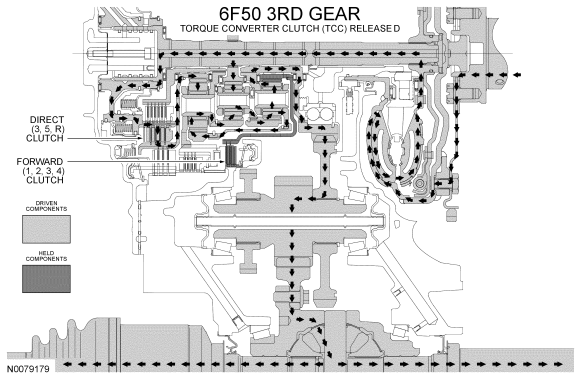

Fig 1: Power Flow

Courtesy of FORD MOTOR CO.

Hydraulic Operation -   Line pressure hydraulic circuits:

• Line pressure from the pump is supplied to the manual valve.
• Line pressure is regulated by the pressure regulator valve.
• The pressure regulator valve is controlled by varying pressure from the LPC solenoid through the LPC circuit.

Torque converter circuits:

• Regulated line pressure from the pressure regulator valve is directed to the TCC control valve through the CONV FD hydraulic circuit.
• When the TCC is released, CONV FD pressure is directed to the TCC RELEASE circuit by the TCC control valve. Pressure from the TCC RELEASE circuit releases the TCC.
• Transmission fluid from the TCC RELEASE returns to the TCC control valve through the TCC APPLY circuit.

Cooler and lubrication hydraulic circuits:

• The TCC control valve directs transmission fluid from the TCC APPLY circuit (return circuit from the torque converter when the TCC is released) to the COOLER FEED circuit.
• In the COOLER FEED circuit, transmission fluid flows through the transmission fluid cooler or the thermal bypass valve to the LUBE circuit.

Solenoid hydraulic circuits:

• The LPC solenoid applies varying pressure to the pressure control valve through the LPC hydraulic circuit. The LPC solenoid regulates line pressure by controlling the position of the pressure regulator valve.
• SSA applies pressure to the forward (1, 2, 3, 4) clutch regulator valve to apply the forward clutch.
• SSB applies pressure to the direct (3, 5, R) clutch regulator valve to apply the direct clutch.

Clutch hydraulic circuits:

• Line pressure from the manual valve is directed to the multiplex shift valve through the DRIVE 1 hydraulic circuit.
• The multiplex shift valve directs DRIVE 1 pressure to the forward (1, 2, 3, 4) clutch regulator valve through the DRIVE 2, CB26FD/CB1234FD and CB1234 SUP hydraulic circuits. The DRIVE 2 hydraulic circuit also feeds the C35R SUPPLY hydraulic circuit which supplies the direct (3, 5, R) clutch regulator valve with pressure.
• The low/reverse/overdrive (4, 5, 6) clutch regulator valve directs DRIVE 2 pressure to the multiplex shift valve through the VALVE LATCH hydraulic circuit to latch the multiplex shift valve.
• Regulated CB1234 SUP pressure from the forward (1, 2, 3, 4) clutch regulator valve is directed to the forward (1, 2, 3, 4) clutch through the CB1234 hydraulic circuit to apply the clutch.
• Regulated C35R SUPPLY pressure from the direct (3, 5, R) clutch regulator valve is directed to the direct (3, 5, R) clutch through the C35R hydraulic circuit to apply the clutch.

For additional hydraulic circuit and information, refer to Hydraulic Circuits .

Electrical Operation -   Solenoid operation:

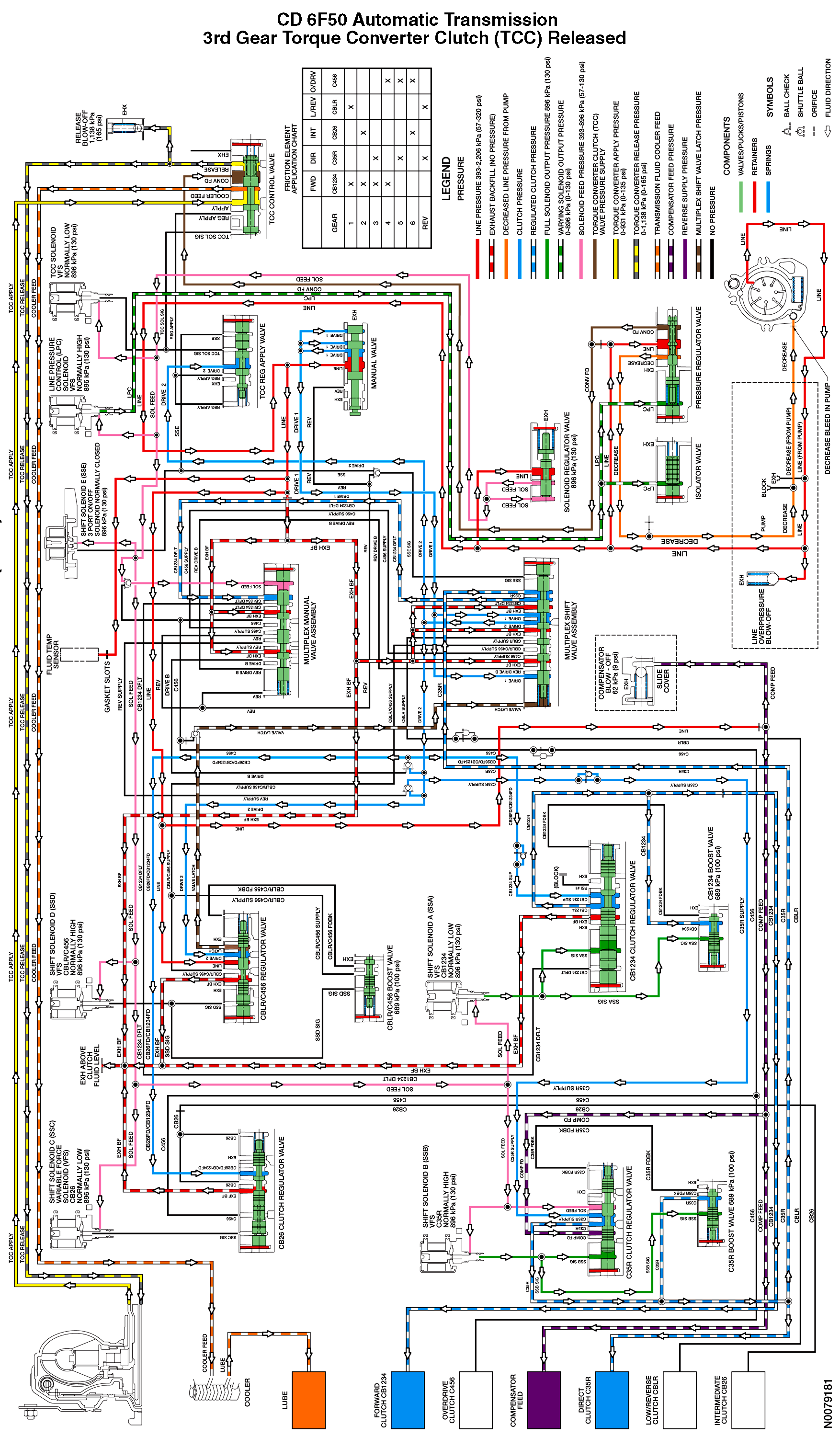

Fig 2: Identifying 6F50 3rd Gear (TCC Released) Position Pressure Circuits

Courtesy of FORD MOTOR CO.

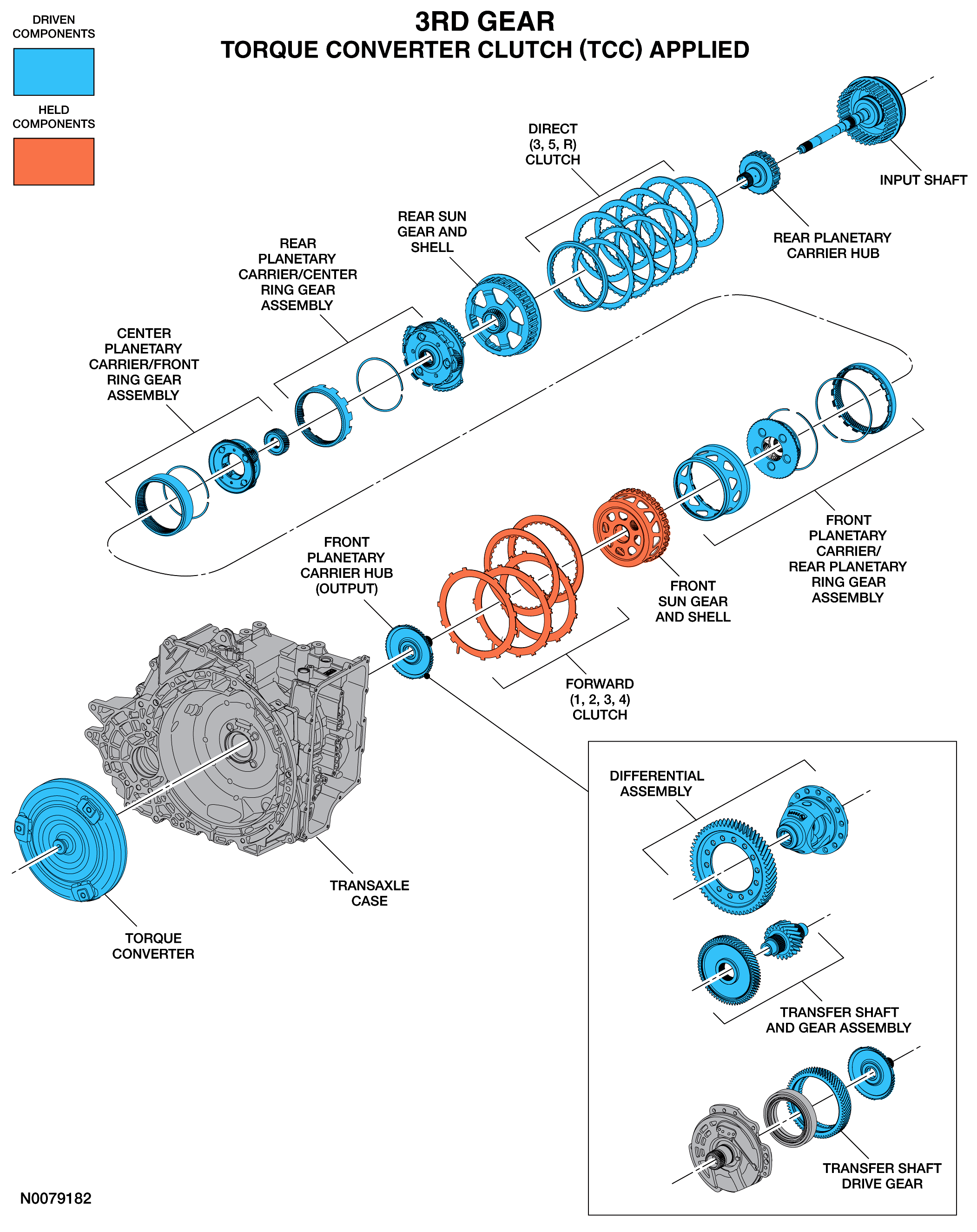

Fig 3: Identifying 6F50 3rd Gear TCC Applied Position Components

Courtesy of FORD MOTOR CO.
